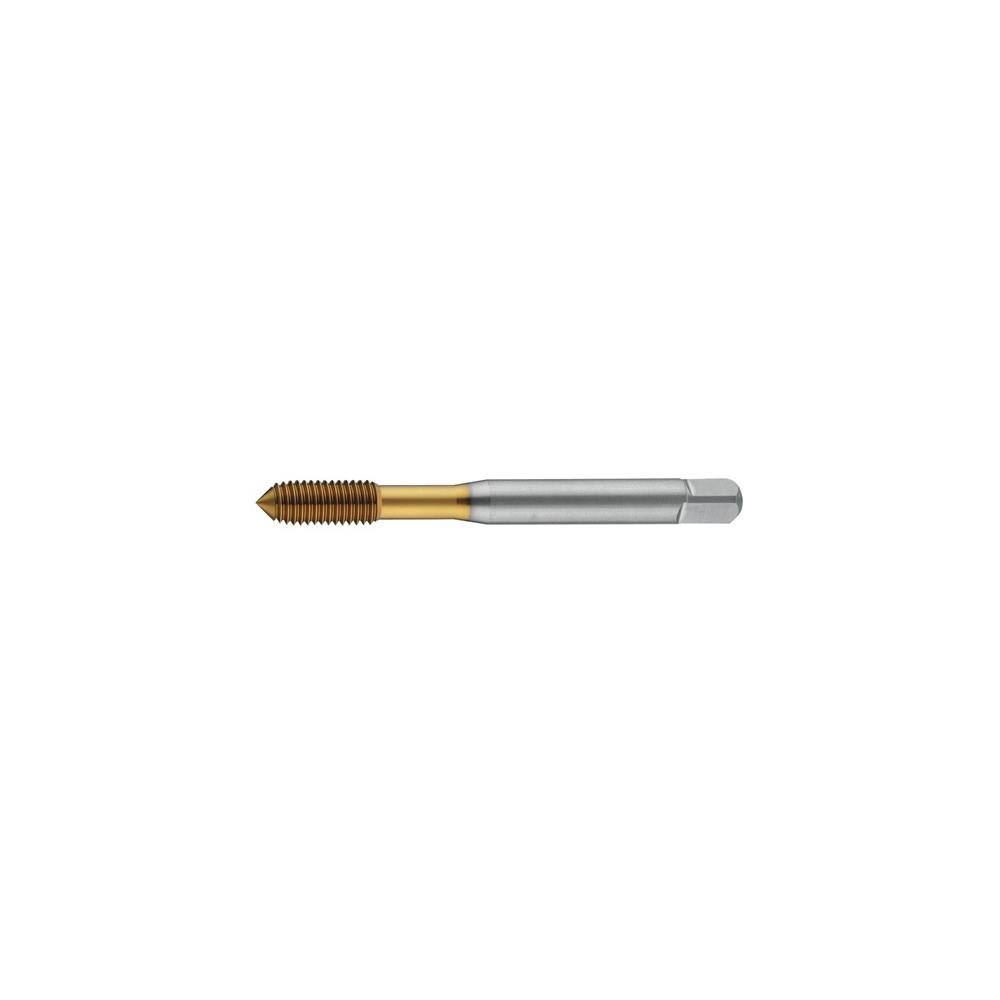

PROMAT Thread former DIN 2174 (DIN 371) M6 shape C HSS-Co TiN 6HX w/o lubrication grooves
Sale ends in:
Thread former DIN 2174 (DIN 371) M6 shape C HSS-Co TiN 6HX w/o lubrication grooves
Thread former DIN 2174 (DIN 371) M6 shape
PRODUCT DESCRIPTION
HSS-Co

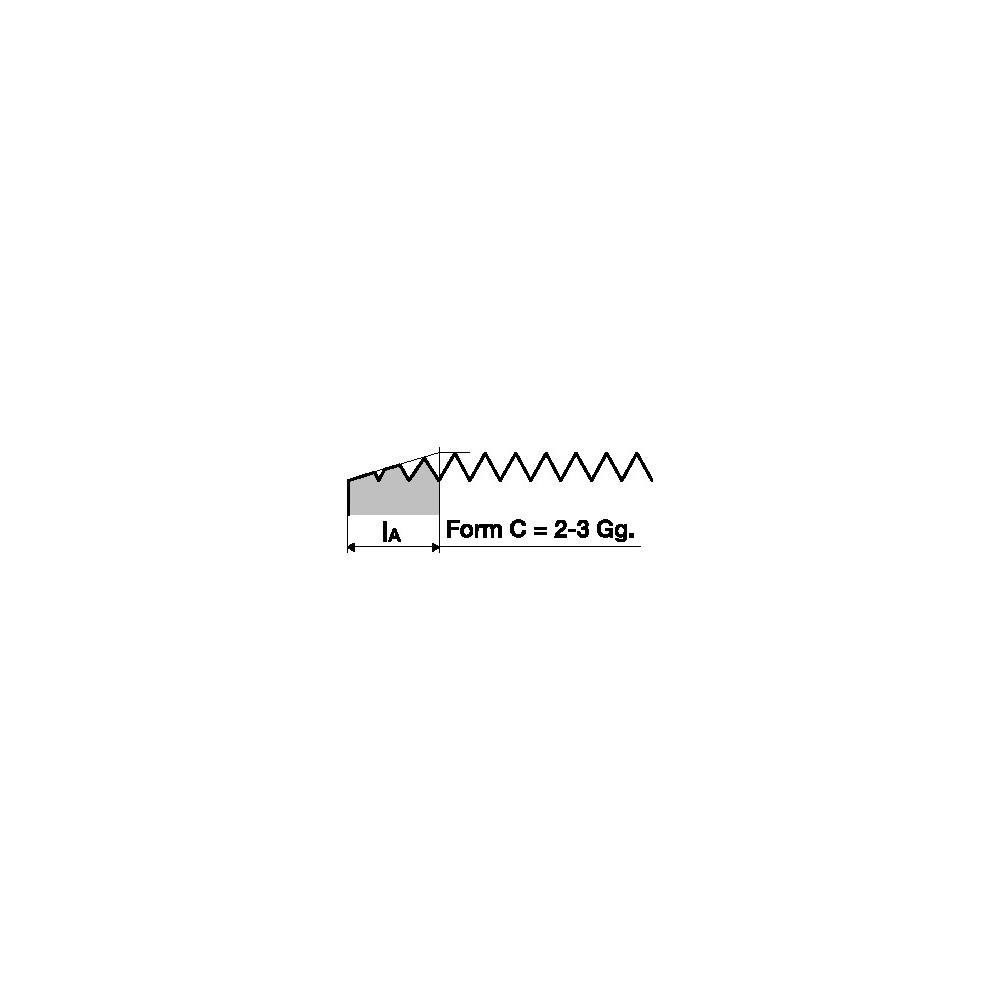

– Shape C
– TiN-coated
– Straight-fluted
– Flanks relief-ground

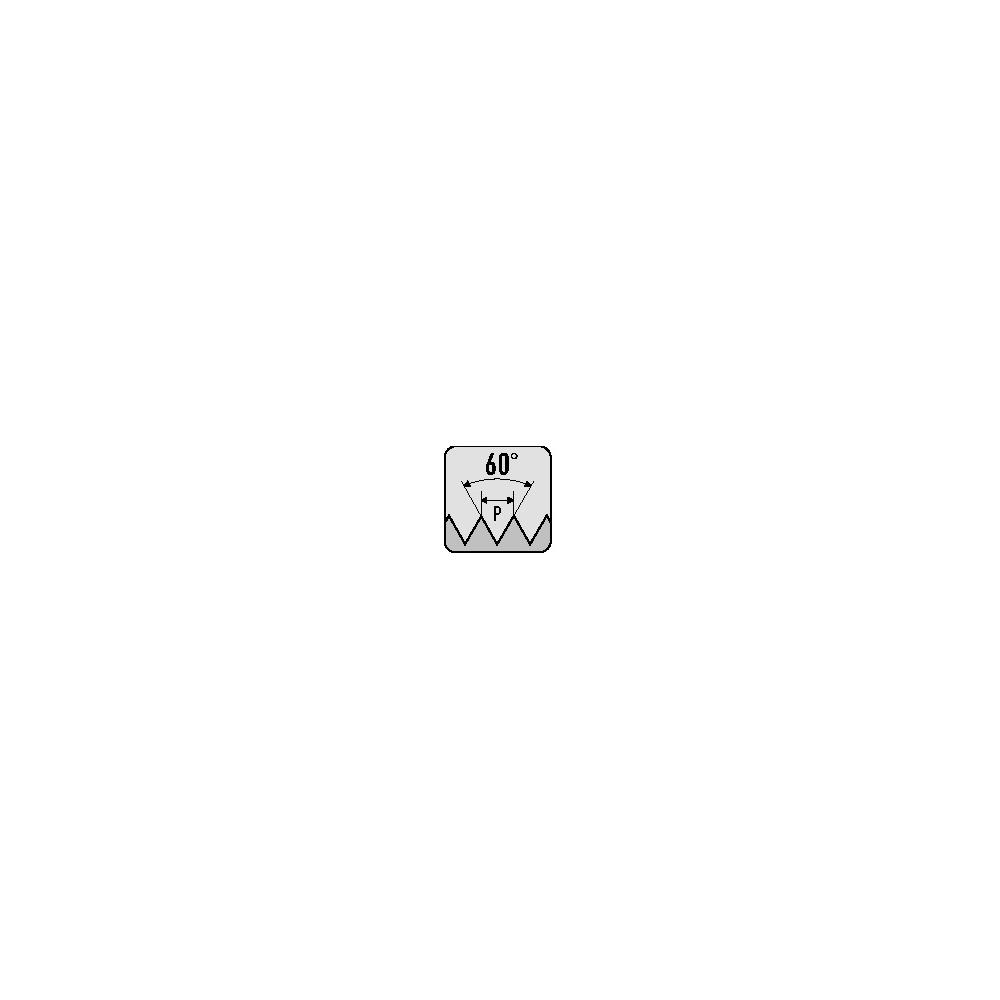

– Metric ISO medium thread
– Tolerance range 6HX

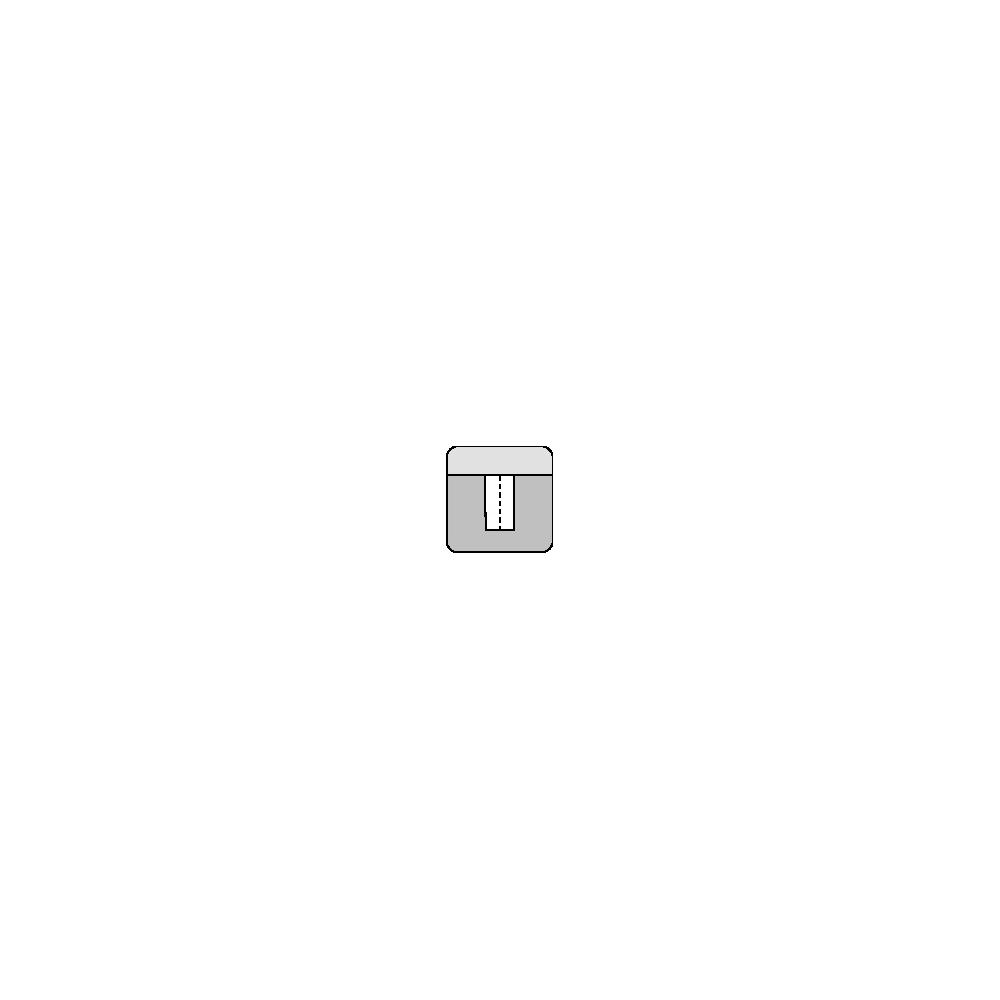

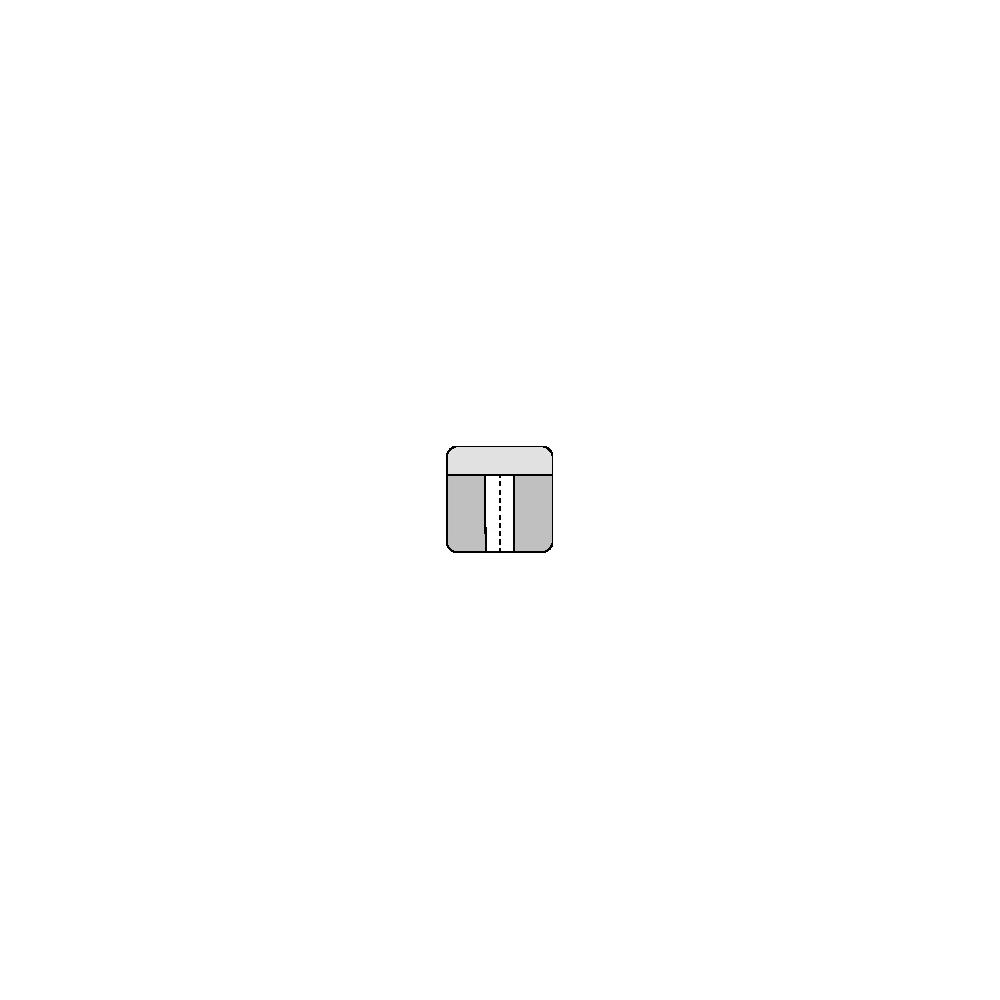

– For through-hole and blind-hole threads
– In materials such as non-ferrous metals and steels with at least 10 % breaking strain Further technical information:
– Thread length: 19mm
– Shank Ø: 6mm
Standard: DIN 2174 (DIN 371)
Nominal thread Ø: M6
Pitch: 1 mm
Overall length: 80 mm
Square: 4.9 mm
Core hole Ø: 5,55 mm
Coating: TiN-coated
Lubrication grooves: No lubrication grooves
Shape: C
To
Scope of delivery:
1,00 ST Thread former DIN 2174 (DIN 371) M6 shape C HSS-Co TiN 6HX w/o lubrication grooves
Nominal thread Ø: M6
Pitch: 1 mm
Overall length: 80 mm
Square: 4.9 mm
Core hole Ø: 5,55 mm
Coating: TiN-coated
Lubrication grooves: No lubrication grooves
Shape: C
To
Scope of delivery:
1,00 ST Thread former DIN 2174 (DIN 371) M6 shape C HSS-Co TiN 6HX w/o lubrication grooves
