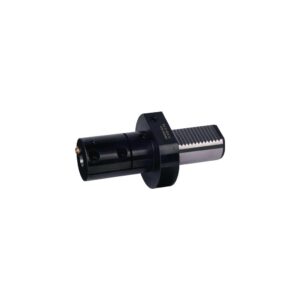

PROMAT Tool holder E2 S DIN 69880 type B clamping dm 32 mm VDI40 suitable for boring bars

For boring bars
– Slotted type
– Shape E2 S
– Reduces or prevents vibrations by clasping the boring bar
– Also suitable for fully rounded boring bars with V-groove
– Holders are as pierced in the shank wherever possible
– Secured against fall-out in the turret through circlip
– Slotted area to 16 mm 4 x D, 20 and 25 mm 3 x D, from 32 mm 2,5 x D
– External and internal cooling possible
– For pierced shank, length adjustment possible from the side of shank
– Type B = Not pierced Further technical information:
– D: 65mm
– Pierced: No
– Type: B
– L1: 120mm
– L: 142mm
– Shape: E2 S
– d1: 40mm
– Suitable for: Boring bars
– d2: 32mm
– Standard: DIN 69880
