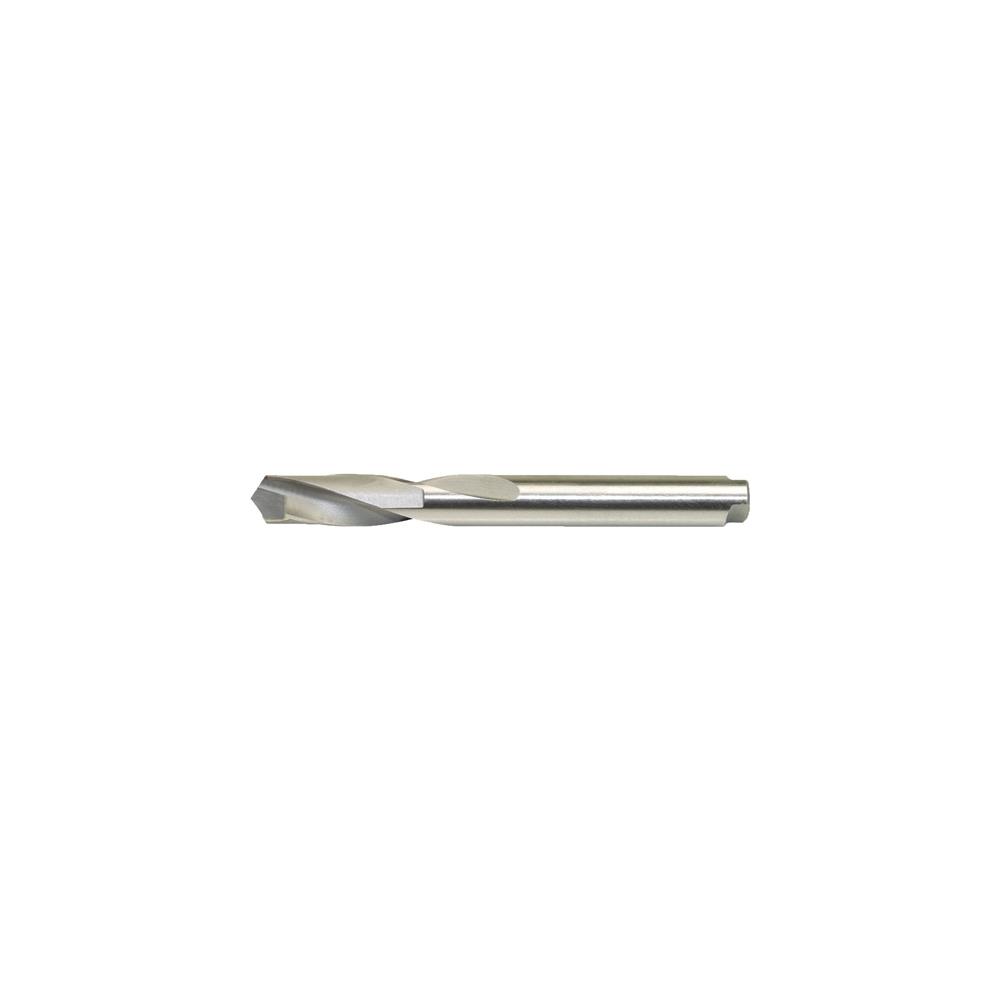

PROMAT Twist drill DIN 8037 type N nominal dm 15 mm HM DIN 6535 HA Length of spiral 71 mm
Sale ends in:
Twist drill DIN 8037 type N nominal dm 15 mm HM DIN 6535 HA Length of spiral 71 mm
Twist drill DIN 8037 type N nominal dm
PRODUCT DESCRIPTION
With carbide cutters
– DIN 8037
– Type N
– Point angle 118°
– With straight shank
– Right-hand cutting
– For drilling spring band steel, white-cast iron, toughened bronzes, hard plastics and heavily abrasive materials Further technical information:
– Feed in steel up to 1000 N: 0,15mm/rev
– Quality: Profile-ground
Coating: Uncoated
Nominal Ø: 15 mm
Overall length: 125 mm
Length of spiral: 71 mm
Shank design: DIN 6535 HA
Point angle: 118 °
Type: N
Standard: DIN 8037
Cutting material: Carbide
Brand: PROMAT
Scope of delivery:
1,00 ST Twist drill DIN 8037 type N nominal dm 15 mm HM DIN 6535 HA Length of spiral 71 mm
Nominal Ø: 15 mm
Overall length: 125 mm
Length of spiral: 71 mm
Shank design: DIN 6535 HA
Point angle: 118 °
Type: N
Standard: DIN 8037
Cutting material: Carbide
Brand: PROMAT
Scope of delivery:
1,00 ST Twist drill DIN 8037 type N nominal dm 15 mm HM DIN 6535 HA Length of spiral 71 mm
