RIEGLER Service unit standard thread 1/2 inch semi-automatic BG III 3-part 3200 l/min width 259 mm
Sale ends in:
Service unit standard thread 1/2 inch semi-automatic BG III 3-part 3200 l/min width 259 mm
Service unit standard thread 1/2 inch semi-automatic BG
PRODUCT DESCRIPTION
Standard

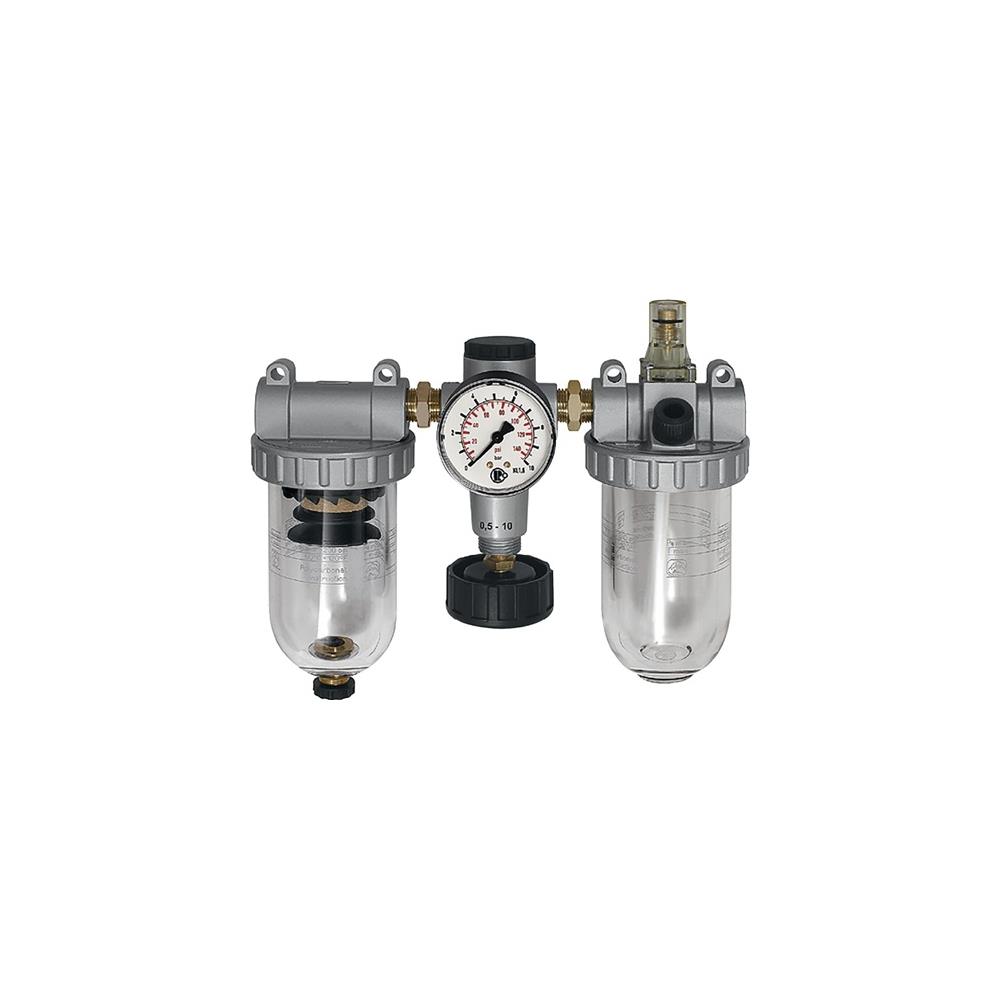

– Three-part, comprising a system pressure-independent, reversible diaphragm pressure regulator with secondary ventilation, a centrifugal separator and a proportional oiler
– With polycarbonate container
– Internal thread Further technical information:
– A: 259mm
– C: 55mm
– Drain valve: Semi-automatic
– B: 223.4mm
Model: BG III
Flow: 3200 l/min
Width: 259 mm
Ambient temperature: Max. +60 °C
DN: 15 mm
Thread: 1/2
Flow rate measurement: At P1 = 8, P2 = 6 and pressure drop p = 1
Temperature range: Max. +60 °C
Scope of delivery:
1,00 ST Service unit standard thread 1/2 inch semi-automatic BG III 3-part 3200 l/min width 259 mm
Flow: 3200 l/min
Width: 259 mm
Ambient temperature: Max. +60 °C
DN: 15 mm
Thread: 1/2
Flow rate measurement: At P1 = 8, P2 = 6 and pressure drop p = 1
Temperature range: Max. +60 °C
Scope of delivery:
1,00 ST Service unit standard thread 1/2 inch semi-automatic BG III 3-part 3200 l/min width 259 mm
