Robert Bosch Power Tools GmbH Angle Grinder GWS 24-230 JZ
Angle Grinder GWS 24-230 JZ
PRODUCT DESCRIPTION
Angle Grinder GWS 24-230 JZ, The GWS 24-180 JZ Professional angle grinder unites improved user protection with extended lifetime, thanks to its innovative CYCLON TECH dust protection system. Its 2,400 W motor handles tough grinding and cutting jobs. The CYCLON TECH based dust protection system collects up to 90% of interior dust, boosting lifespan. Reduced motor vibration and the anti-vibration auxiliary handle ensure more working comfort. This angle grinder delivers powerful cutting and grinding of diverse materials including metal, concrete, and stone. The GWS 24-180 JZ Professional features restart protection and soft start function for increased user protection. Two-hole spanner (1 607 950 061); Backing flange (spare part number 2 605 703 014); Locking nut (1 603 345 043); Cardboard box; Protective cover (1 619 P15 622); Auxiliary handle (1 602 025 030)
Article ID: 06018C3300
ADDITIONAL INFORMATIONTool dimensions (length): 530 mm
Tool dimensions (height): 138 mm
Switch: Lockable Switch
Packaging dimensions (width): 195 mm
Packaging dimensions (length): 605 mm
Packaging dimensions (height): 135 mm
Packaging dimensions (width x length x height): 195 x 605 x 135 mm
Voltage, electrical: 230 V
Rated input power: 2.400 W
No-load speed, up to: 8.500 rpm
No-load speed: 8,500 rpm
Grinding spindle thread: M14
Main handle: Barrel
Disc diameter: 180 mm
Rubber backing pad, diameter: 180 mm
Grinding head, diameter: 140 mm
Weight: 5,8 kg
Vibration emission value ah [Surface grinding (roughing)]: 6,5 m/s²
Uncertainty K [Surface grinding (roughing)]: 1,5 m/s²
Vibration emission value ah [Sanding with sanding sheet]: 3,0 m/s²
Uncertainty K [Sanding with sanding sheet]: 1,5 m/s²
Product category subdivision: Angle Grinder
Positioning: Powerful 180-mm angle grinder with new CYCLON TECH dust protection system
User benefit incl. Reason to believe: Powerful 2,400 W motor for strong cutting and grinding
User benefit incl. Reason to believe: Revolutionary CYCLON TECH dust protection system for significantly longer lifetime
User benefit incl. Reason to believe: Reduced vibration through smoother motor operation and anti-vibration auxiliary handle
Positioning (BE): Powerful 2,400W angle grinder with CYCLON TECH dust protection system for extended performance
User benefit incl. Reason to believe (BE): Worlds first CYCLON TECH removes up to 90% of dust from cooling air for up to 3X increased motor lifetime.
User benefit incl. Reason to believe (BE): New patented motor delivers up to 2X high overload capability for higher material removal rate.
User benefit incl. Reason to believe (BE): Precision engineered mechanical system together with the vibration control auxiliary handle reduces the vibration by 13% for the operator.
User benefit incl. Reason to believe (BE): Overload Protection shuts down the tool under extended overload conditions, to protect the tool
User benefit incl. Reason to believe (BE): Restart Protection for increased user safety and Soft Start adds to convenience.

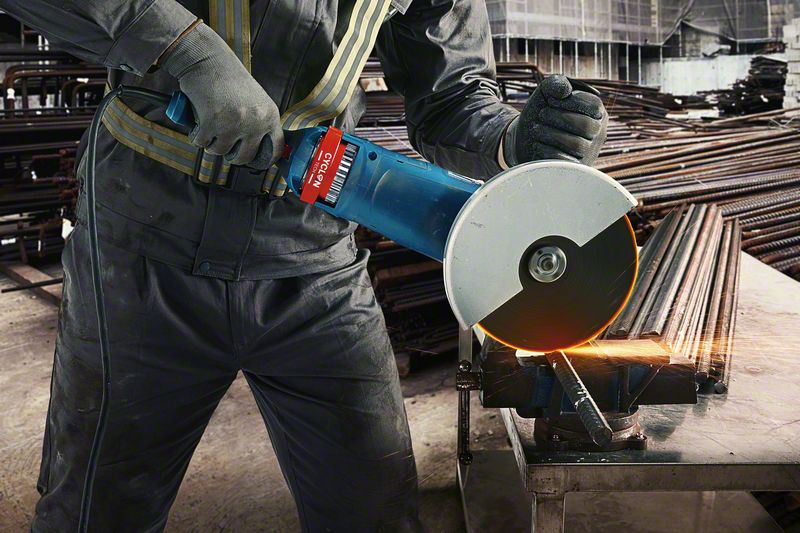

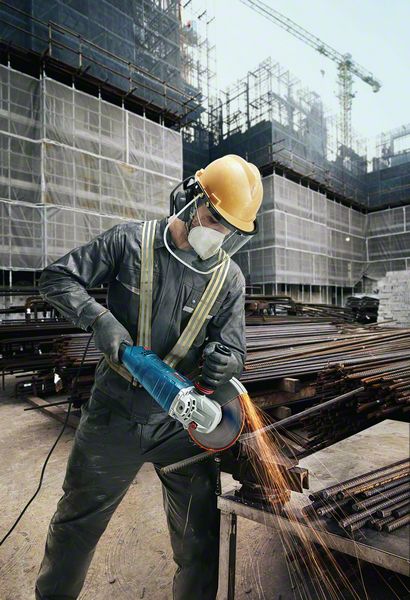

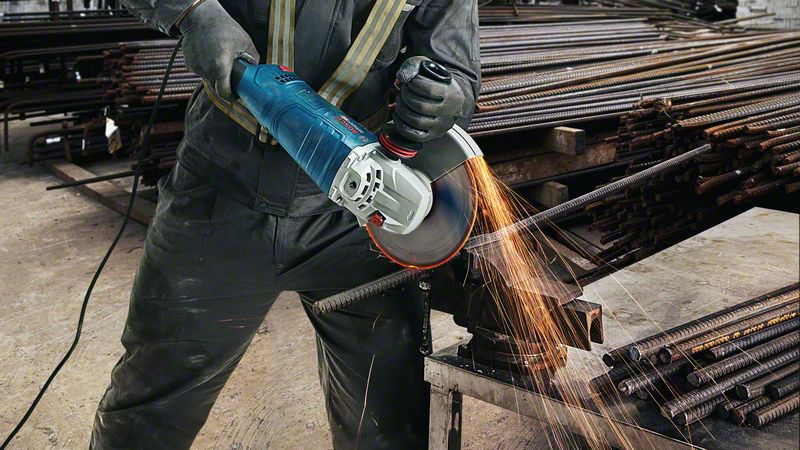

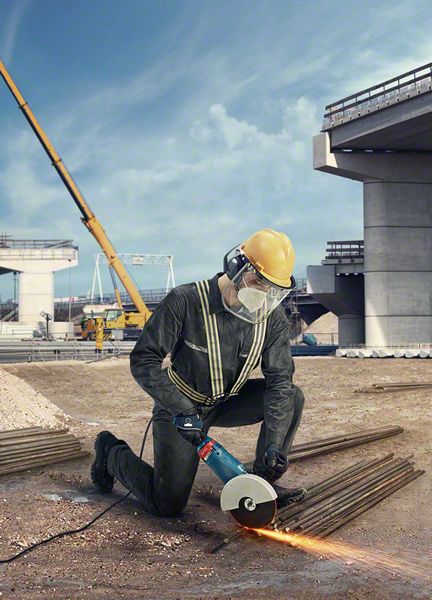

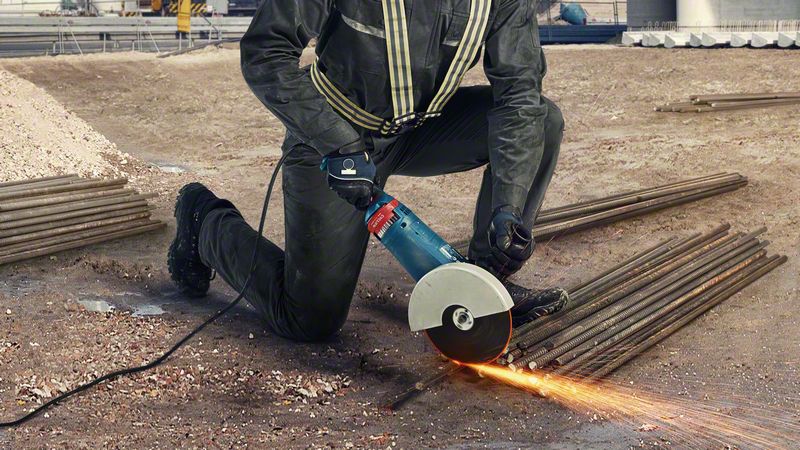

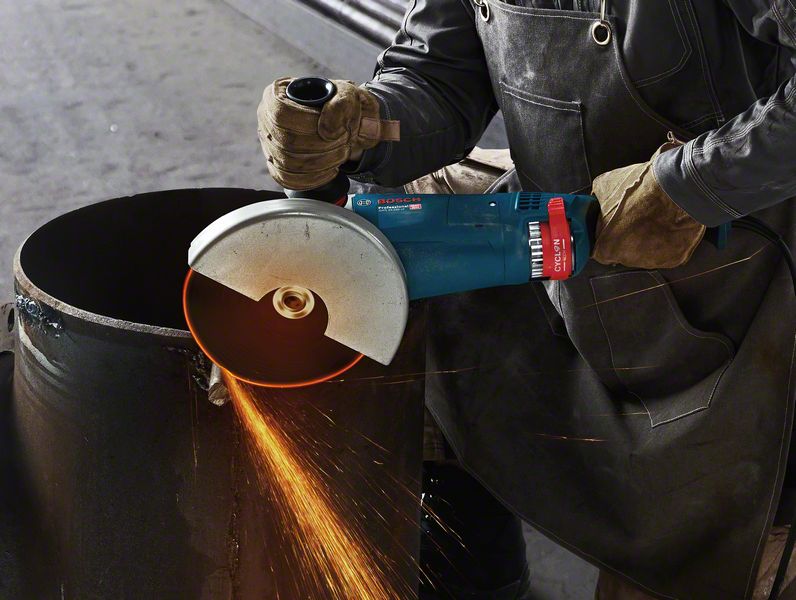

Areas of application: Cutting ferrous metals
Areas of application: Cutting synthetic material
Areas of application: Cutting non-ferrous metal
Areas of application: Cutting stone
Areas of application: Grinding coating material
Areas of application: Grinding concrete
Areas of application: Grinding ferrous metals
Areas of application: Grinding wood
Areas of application: Grinding synthetic material
Areas of application: Grinding natural materials
Areas of application: Grinding stone
Title: Angle Grinder GWS 24-230 JZ Professional
Novelty: no
Novelty until: 01.06.2022

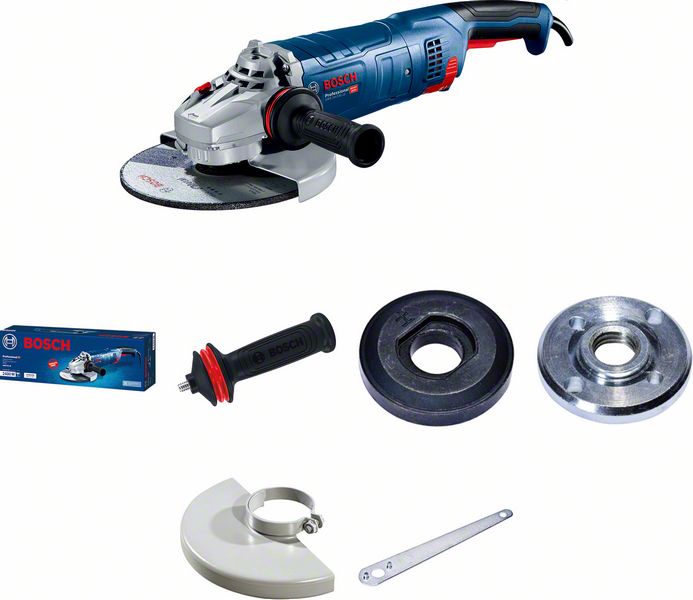

Scope of supply: Two-hole spanner (1 607 950 061)
Scope of supply: Backing flange (spare part number 2 605 703 014)
Scope of supply: Locking nut (1 603 345 043)
Scope of supply: Cardboard box
Scope of supply: Protective cover (1 619 P15 622)
Scope of supply: Auxiliary handle (1 602 025 030)
SOL Date: 01.01.2022
Scope of delivery:
1 ST Angle Grinder GWS 24-230 JZ
