Robert Bosch Power Tools GmbH Combi Laser GCL 2-50 CG
Combi Laser GCL 2-50 CG
PRODUCT DESCRIPTION

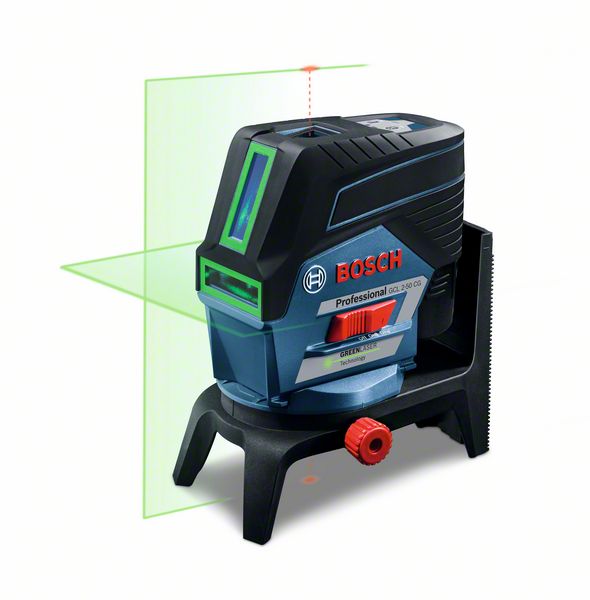

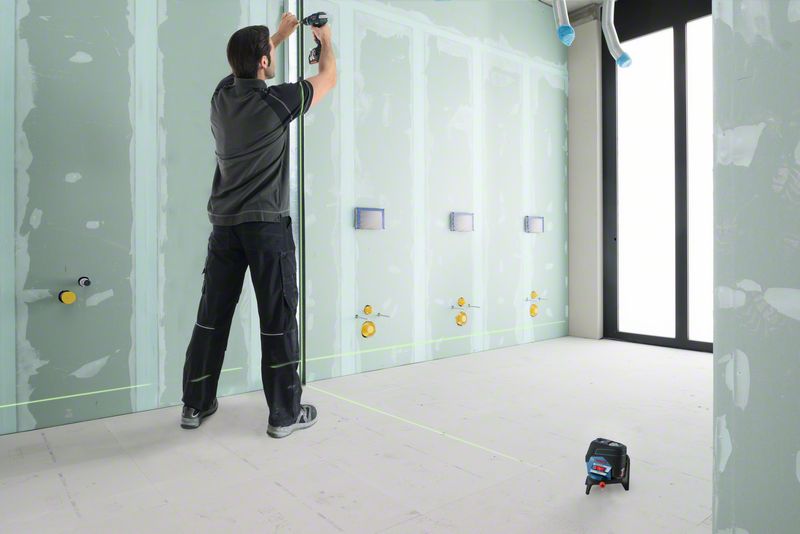

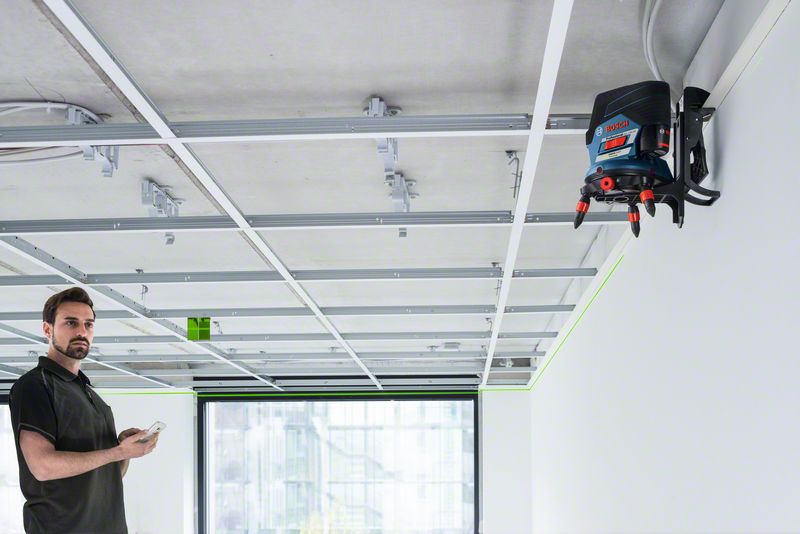

Combi Laser GCL 2-50 CG, The combi laser GCL 2-50 CG Professional offers supreme visibility with a range of smart functions. Bright green horizontal and vertical laser lines and two centred plumb points offer optimal visibility, while its Bluetooth®-connection offers remote-control adjustment via a smartphone app. For increased flexibility, Dual Power Source allows 12 V Li-ion battery or standard alkaline batteries. This combi laser is designed for horizontal and vertical alignments with a long overshoot of nearly 360° and is suitable for projects such as dry wall installation and interior finishing tasks. The GCL 2-50 CG Professional delivers high visibility of up to 20 m without a receiver and 50 m with a receiver. For precise positioning around the plumb points, the RM 3 Professional offers motorised control, and RM 2 Professional allows for manual adjustments. Ceiling clamp; Laser target plate; L-BOXX 136 (1 600 A01 2G0); Protective Bag; Rotating mount RM 2 Professional (0 601 092 700); 1 x battery GBA 12V 2.0Ah (1 600 Z00 02X); Quick charger GAL 12V-40 Professional (1 600 A01 9R3)
Article ID: 0601066H00
ADDITIONAL INFORMATIONLaser diode: 500 - 540 nm, < 10 mW
Laser diode: 630 - 650 nm, < 1mW
Operating temperature, from: -10 °C
Operating temperature, up to: 50 °C
Operating temperature: -10 - 50 °C
Storage temperature, from: -20 °C
Storage temperature, up to: 70 °C
Storage temperature: -20 - 70 °C
Laser class: 2
Working range, value: 20 m
Working range: 20 m
Working range with receiver, value: 50 m
Working range with receiver: 50 m
Accuracy: ± 0.3 mm/m* (*plus use-dependent deviation)
Working range of laser points, max.: 10 m (top)
Working range of laser points, max.: 10 m (bottom)
Self-levelling range: ± 4°
Dust and splash protection: IP 54 *** (***except for the lithium-ion battery and AA1 battery adapter)
Operating time (max.): 10 h (Li-Ion) and 4 h (4 x AA) in cross-line and point operation
Operating time (max.): 13 h (Li-Ion) and 6 h (4 x AA) in cross-line operation
Operating time (max.): 15 h (Li-Ion) and 12 h (4 x AA) in line operation
Operating time (max.): 60 h (Li-Ion) and 32 h (4 x AA) in point operation
Tripod thread: 1/4"
Weight, approx.: 0,6 kg
Colour of laser line: green
Color of plumb points: red
Projection: 2 lines / 2 points
Plumb point accuracy: ± 0.7 mm/m* (*plus use-dependent deviation)
Compatible laser receivers: LR 7
Product category subdivision: Combi Laser
Positioning: Supreme visibility connected with smart functions
User benefit incl. Reason to believe: Bright green horizontal and vertical laser lines and two centred plumb points offer optimal visibility
User benefit incl. Reason to believe: Bluetooth®-connection paired with Levelling Remote App offers remote-control adjustment of the tool via a smartphone
User benefit incl. Reason to believe: Dual Power Source allows for the use of 12 V Li-ion battery or standard alkaline batteries
Title: Combi Laser GCL 2-50 CG Professional
Novelty: no
Novelty until: 25.06.2017
Scope of supply: Ceiling clamp
Scope of supply: Laser target plate
Scope of supply: L-BOXX 136 (1 600 A01 2G0)
Scope of supply: Protective Bag
Scope of supply: Rotating mount RM 2 Professional (0 601 092 700)
Scope of supply: 1 x battery GBA 12V 2.0Ah (1 600 Z00 02X)
Scope of supply: Quick charger GAL 12V-40 Professional (1 600 A01 9R3)
SOL Date: 25.03.2017
Scope of delivery:
1 ST Combi Laser GCL 2-50 CG
