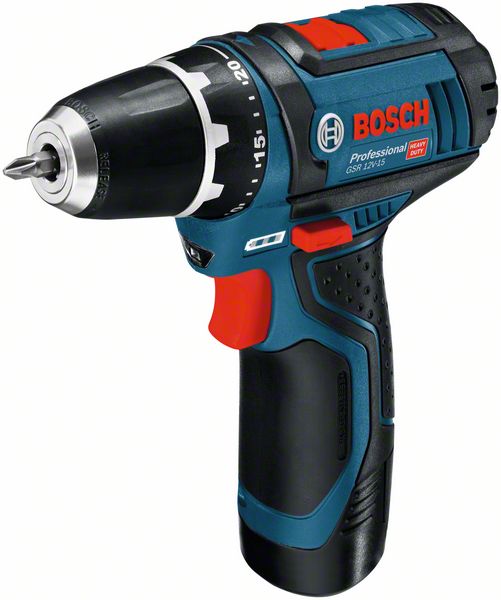

Robert Bosch Power Tools GmbH Cordless Drill/Driver GSR 12V-15

Torque (soft): 15 Nm
Torque (hard): 30 Nm
Torque (soft/hard/max.): 15/30/- Nm
Battery voltage: 12.0 V
Torque settings (standard): 20
Max. drilling diameter in wood: 19 mm
Max. drilling diameter in steel: 10 mm
Vibration emission value ah [Drilling in metal]: 1,5 m/s²
Uncertainty K [Drilling in metal]: 2,5 m/s²
Vibration emission value ah [Screwdriving]: 1,5 m/s²
Uncertainty K [Screwdriving]: 2,5 m/s²
Tool dimensions (height): 178 mm
Packaging dimensions (width): 355 mm
Packaging dimensions (length): 445 mm
Packaging dimensions (height): 125 mm
Packaging dimensions (width x length x height): 355 x 445 x 125 mm
Battery capacity: 2,0 Ah
Weight incl. battery: 1,0 kg
No-load speed, 1st gear, from: 0 rpm
No-load speed, 1st gear, up to: 400 rpm
No-load speed, 2nd gear, from: 0 rpm
No-load speed, 2nd gear, up to: 1.300 rpm
No-load speed (1st gear / 2nd gear): 0 - 400 / 0 - 1,300 rpm
Chuck capacity, min.: 1 mm
Chuck capacity, max.: 10 mm
Chuck capacity, min./max.: 1 / 10 mm
Torque settings (additional): 1
Torque settings: 1
Max. screw diameter: 7 mm
Product category subdivision: Cordless Drill/Driver
Positioning: Drill driver with well-balanced performance and compactness in Bosch´s 12 V category
Long version part 1: The GSR 12V-15 Professional cordless drill driver offers well-balanced performance and compactness in Bosch´s 12 V category. Its 30 Nm hard torque and 0-1,300 rpm offer the best performance-to-size ratio. Its compact design allows for optimum handling and makes it ideal for working overhead and in tight spaces. Overload, overheating, and deep discharge are prevented by the drill driver´s Electronic Cell Protection. This tool is intended for drilling in wood with a maximum diameter of 19 mm, in steel up to 10 mm, and for screw diameters of up to 7 mm. It is compatible with all Bosch Professional 12 V batteries and chargers (Professional 12V System).
Long version part 2: The GSR 12V-15 Professional also features 2-gear, Autolock, charge level indicator, Electronic Motor Protection, and Li-ion.
User benefit incl. Reason to believe: 30 Nm hard torque and 0-1,300 rpm offer an ideal combination of power and size

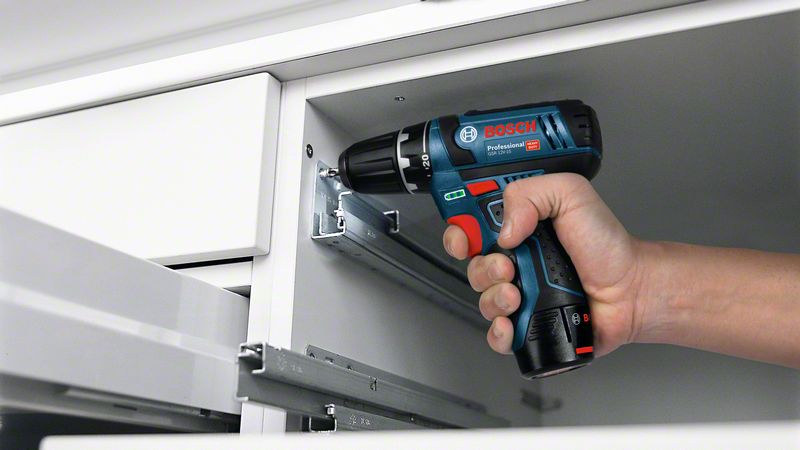

User benefit incl. Reason to believe: Compactness enables optimum handling and makes it ideal for working overhead and in tight spaces
User benefit incl. Reason to believe: Electronic Cell Protection prevents overload, overheating, and deep discharge
Positioning (BE): The most powerful and compact driver in its class
User benefit incl. Reason to believe (BE): Quick-clamp chuck (10 mm)
User benefit incl. Reason to believe (BE): 20 torque configurations + 1 for drilling
User benefit incl. Reason to believe (BE): Electronic cell protection (ECP)
Areas of application: Drilling in concrete
Areas of application: Drilling in ferrous metals
Areas of application: Drilling in wood
Areas of application: Drilling in synthetic material
Areas of application: Drilling in non-ferrous metal
Areas of application: Drilling in stone
Areas of application: Wet drilling in concrete
Areas of application: Wet drilling in stone
Areas of application: Dry drilling in stone
Areas of application: Screwdriving
Areas of application: Brushing coating material
Areas of application: Brushing ferrous metals
Areas of application: Brushing wood
Areas of application: Brushing non-ferrous metal
Title: Cordless Drill/Driver GSR 12V-15 Professional
Novelty: no
Novelty until: 01.07.2017

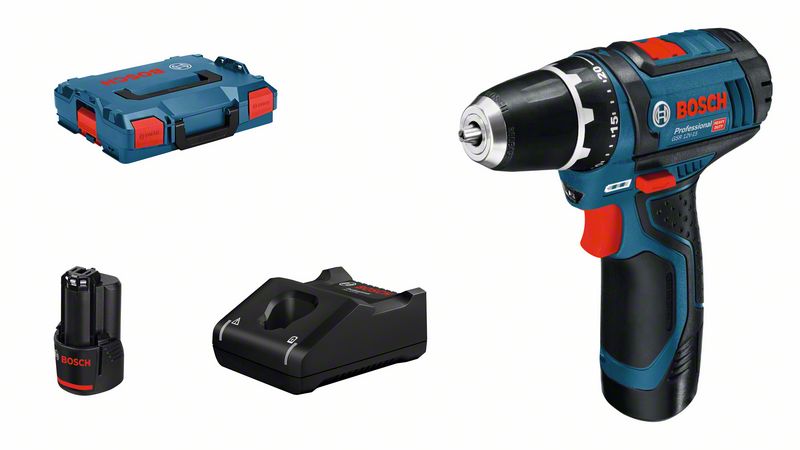

Scope of supply: L-BOXX 102 (1 600 A01 2FZ)
Scope of supply: Quick charger GAL 12V-40 Professional (1 600 A01 9R3)
Scope of supply: 1/2 L-BOXX inlay for tool and charger (1 600 A00 2V2)
Scope of supply: 1/2 L-BOXX inlay for accessories (1 600 A00 2WY)
Scope of supply: 2 x battery GBA 12V 2.0Ah (1 600 Z00 02X)
SOL Date: 01.01.2017


Scope of delivery:
1 ST Cordless Drill/Driver GSR 12V-15
