Robert Bosch Power Tools GmbH Cordless Rotary Hammer BITURBO with SDS plus GBH 18V-34 CF
Cordless Rotary Hammer BITURBO with SDS plus GBH 18V-34 CF
PRODUCT DESCRIPTION
Cordless Rotary Hammer BITURBO with SDS plus GBH 18V-34 CF, Perfect for demanding jobs in concrete – Bosch´s GBH 18V-34 CF Professional is the most powerful cordless SDS plus hammer, ideal for tough applications. This powerhouse´s BITURBO Brushless technology with ProCORE18V battery delivers an outstanding performance of 5.8 J, making it the most powerful cordless SDS plus hammer in its range. Perfect tool control is ensured by its soft start function for precise chiselling during use and three different working modes (Auto, Favorite, Soft) that provide the right setting for every job. The 18V-34 CF is also the smartest SDS plus hammer, displaying real-time tool status via its user interface and allowing for individual adjustments through Bluetooth connectivity to the Bosch Toolbox app. This tool is ideal for hammer drilling and chiselling in concrete, brick, and stone. It is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System). For maximum power, use ProCORE18V 8.0 Ah. 2 x battery ProCORE18V 5.5Ah (1 600 A02 149); Quick charger GAL 1880 CV (1 600 A00 B8G); 1 x Bluetooth Low Energy module GCY 42 Professional (1 600 A01 3WF); Auxiliary handle (2 608 000 703); Depth stop (spare part number 1 613 001 009); SDS plus quick-change chuck (2 608 000 704); Quick-change chuck 1.5 – 13 mm (2 608 000 710); Machine cloth (spare part number: 1 619 200 413); Grease tube (spare part number 1 615 430 010); Carrying case (spare part number 1 605 438 1G2)
Article ID: 0611914003
ADDITIONAL INFORMATIONPackaging dimensions (width): 408 mm
Packaging dimensions (length): 619 mm
Packaging dimensions (height): 147 mm
Packaging dimensions (width x length x height): 408 x 619 x 147 mm
Battery capacity: 5,5 Ah
Battery voltage: 18.0 V
Impact energy (according to EPTA 05/2016): 5,8 J
Impact rate at rated speed, from: 0 bpm
Impact rate at rated speed, up to: 2.900 bpm
Impact rate at rated speed: 0 - 2,900 bpm
Rated speed, from: 0 rpm
Rated speed, up to: 500 rpm
Rated speed: 0 - 500 rpm
Weight excl. battery: 4,9 kg
Tool holder: SDS plus
Drilling dia. in concrete with ham. dr. bits, from: 8 mm
Drilling dia. in concrete with ham. dr. bits, to: 32 mm
Drilling dia. in concrete with hammer drill bits: 8 - 32 mm
Rec. app. range in concr. with ham. dr. bits, from: 12 mm
Rec. app. range in concr. with hammer dr. bits, to: 30 mm
Opt. app. range in concrete with hammer drill bits: 12 - 30 mm
Max. drilling diameter in metal: 13 mm
Max. drilling diameter in wood: 40 mm
Vibration emission value ah [Hammer drilling in concrete]: 10,9 m/s²
Uncertainty K [Hammer drilling in concrete]: 1,5 m/s²
Vibration emission value ah [Chiselling in concrete]: 11,7 m/s²
Uncertainty K [Chiselling in concrete]: 1,5 m/s²
Product category subdivision: Cordless Rotary Hammer BITURBO with SDS plus
Positioning: The market´s most powerful cordless SDS plus hammer
User benefit incl. Reason to believe: Paramount performance with 5.8 J - the most powerful cordless SDS plus hammer in its range for tough jobs in concrete
User benefit incl. Reason to believe: Perfect control - soft start for precise chiselling and 3 different working modes to ensure the right setting for any job
User benefit incl. Reason to believe: Smartest SDS plus hammer - real-time tool status via user interface, individual adjustments by Bluetooth via Bosch Toolbox app
Positioning (BE): The market´s most powerful cordless SDS plus hammer
User benefit incl. Reason to believe (BE): Paramount performance with 5.8 J - the most powerful cordless SDS plus hammer in its range for tough jobs in concrete
User benefit incl. Reason to believe (BE): Perfect control - soft start for precise chiselling and 3 different working modes to ensure the right setting for any job
User benefit incl. Reason to believe (BE): Smartest SDS plus hammer - real-time tool status via user interface, individual adjustments by Bluetooth via Bosch Toolbox app
Areas of application: Drilling in concrete
Areas of application: Drilling in ferrous metals
Areas of application: Drilling in wood
Areas of application: Drilling in synthetic material
Areas of application: Drilling in stone
Areas of application: Chiselling in concrete
Areas of application: Chiselling in wood
Areas of application: Chiselling in stone
Title: Cordless Rotary Hammer BITURBO with SDS plus GBH 18V-34 CF Professional
Novelty: no
Novelty until: 01.03.2021

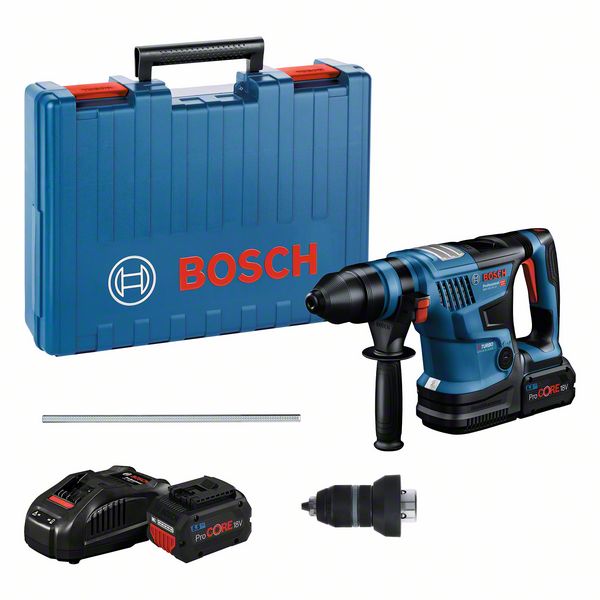

Scope of supply: 2 x battery ProCORE18V 5.5Ah (1 600 A02 149)
Scope of supply: Quick charger GAL 1880 CV (1 600 A00 B8G)
Scope of supply: 1 x Bluetooth Low Energy module GCY 42 Professional (1 600 A01 3WF)
Scope of supply: Auxiliary handle (2 608 000 703)
Scope of supply: Depth stop (spare part number 1 613 001 009)
Scope of supply: SDS plus quick-change chuck (2 608 000 704)
Scope of supply: Quick-change chuck 1.5 - 13 mm (2 608 000 710)
Scope of supply: Machine cloth (spare part number: 1 619 200 413)
Scope of supply: Grease tube (spare part number 1 615 430 010)
Scope of supply: Carrying case (spare part number 1 605 438 1G2)
SOL Date: 01.12.2020
Scope of delivery:
1 ST Cordless Rotary Hammer BITURBO with SDS plus GBH 18V-34 CF
