Robert Bosch Power Tools GmbH Demolition Hammer with SDS max GSH 11 VC

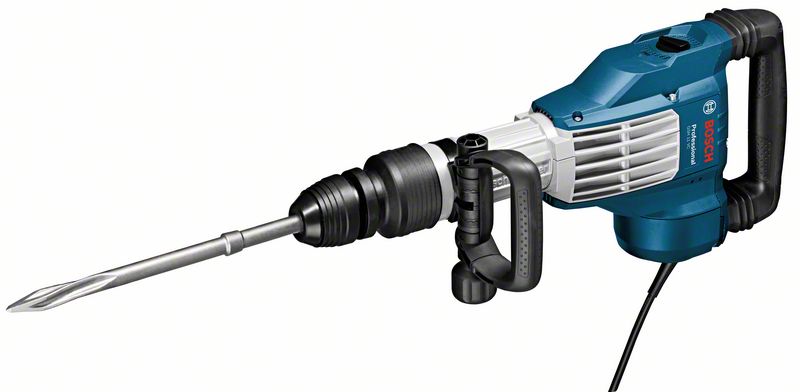

Demolition Hammer with SDS max GSH 11 VC
PRODUCT DESCRIPTION
Demolition Hammer with SDS max GSH 11 VC, The GSH 11 VC Professional with Vibration Control is the most powerful performer in Boschs SDS max corded demolition hammer range. Its extremely powerful motor enables for the ultimate chiselling performance with an outstanding 23 J of impact energy. The demolition hammer is also built for durability, featuring exceptionally robust metal components. Furthermore, its typical breaker design is ideal for vertical demolition tasks and intense chiselling work. This tool is perfect for vertical chiselling in concrete and stone. It is compatible with dust attachment GDE max Professional and GDE hex Professional. The GSH 11 VC Professional’s additional features include a Lock-on switch, Constant Speed, Speed Selection, Vario-Lock, and Vibration Control. Auxiliary handle (spare part number 1 615 132 129); Grease tube (spare part number 1 615 430 010); Machine cloth; 1 x pointed chisel, SDS max, RTec Speed, 400 mm (2 608 690 167); Carrying case (spare part number 1 615 438 492)
Article ID: 0611336000
ADDITIONAL INFORMATIONUncertainty K [Chiselling in concrete]: 8,0 m/s²
Packaging dimensions (width): 450 mm
Packaging dimensions (length): 730 mm
Packaging dimensions (height): 170 mm
Packaging dimensions (width x length x height): 450 x 730 x 170 mm
Voltage, electrical: 230 V
Rated input power: 1.700 W
Impact energy (according to EPTA 05/2016): 23 J
Impact rate at rated speed, from: 900 bpm
Impact rate at rated speed, up to: 1.700 bpm
Impact rate at rated speed: 900 - 1,700 bpm
Weight: 11,4 kg
Tool dimensions (width): 110 mm
Tool dimensions (length): 680 mm
Tool dimensions (height): 236 mm
Tool holder: SDS max
Product category subdivision: Demolition Hammer with SDS max
Positioning: Strongest Bosch SDS max demolition hammer with Vibration Control
User benefit incl. Reason to believe: Delivers 23 J of impact energy for ultimate chiselling performance
User benefit incl. Reason to believe: Highly durable due to extremely robust metal components

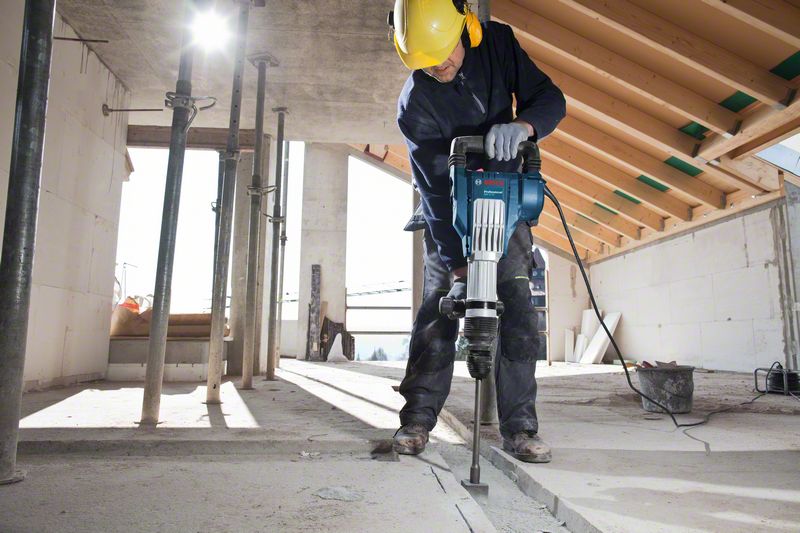

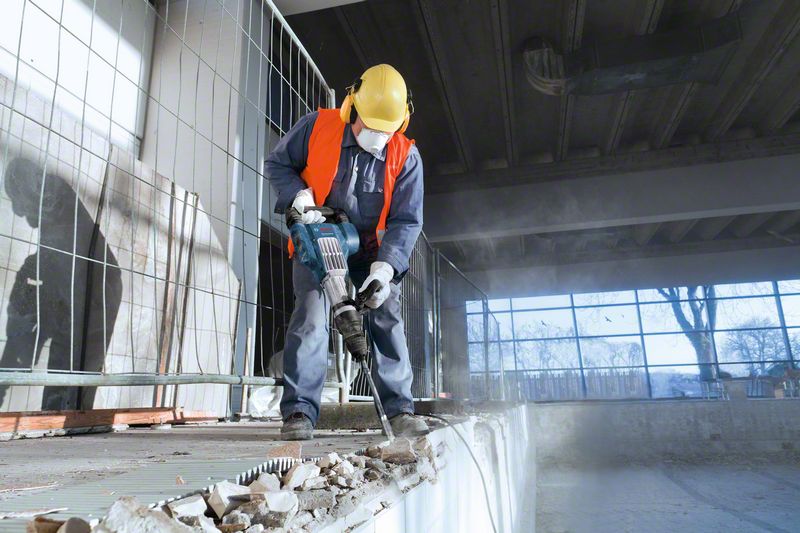

User benefit incl. Reason to believe: Typical breaker design is ideal for vertical demolition tasks and intense chiselling work
Positioning (BE): Unbeatable removal capacity: 1,100 kg of concrete per hour.
User benefit incl. Reason to believe (BE): The best weight-to-power ratio on the market.
User benefit incl. Reason to believe (BE): Dual anti-vibration system: In the handle and in the machine's transmission mechanism.
User benefit incl. Reason to believe (BE): Secure grip for increased productivity in perpendicular applications.
Areas of application: Drilling in concrete
Areas of application: Drilling in stone
Areas of application: Chiselling in concrete
Areas of application: Chiselling in natural materials
Areas of application: Chiselling in stone
Title: Demolition Hammer with SDS max GSH 11 VC Professional
Novelty: no
Scope of supply: Auxiliary handle (spare part number 1 615 132 129)
Scope of supply: Grease tube (spare part number 1 615 430 010)
Scope of supply: Machine cloth
Scope of supply: 1 x pointed chisel, SDS max, RTec Speed, 400 mm (2 608 690 167)

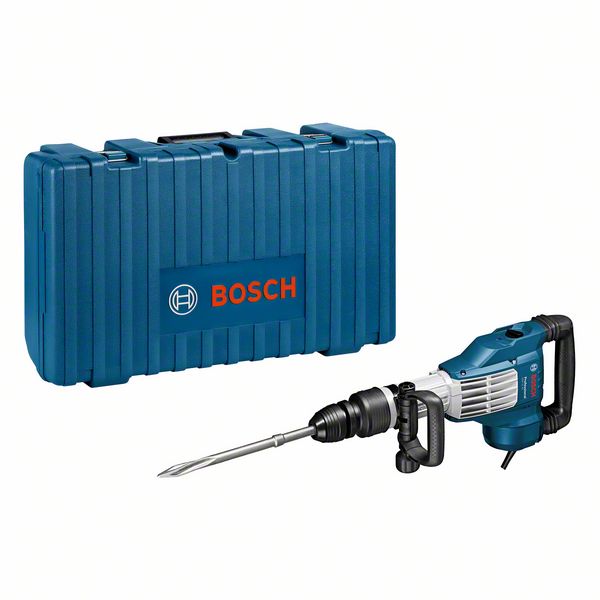

Scope of supply: Carrying case (spare part number 1 615 438 492)
SOL Date: 02.05.2012
Scope of delivery:
1 ST Demolition Hammer with SDS max GSH 11 VC
