Robert Bosch Power Tools GmbH Diamond Drill GDB 180 WE
Diamond Drill GDB 180 WE
PRODUCT DESCRIPTION

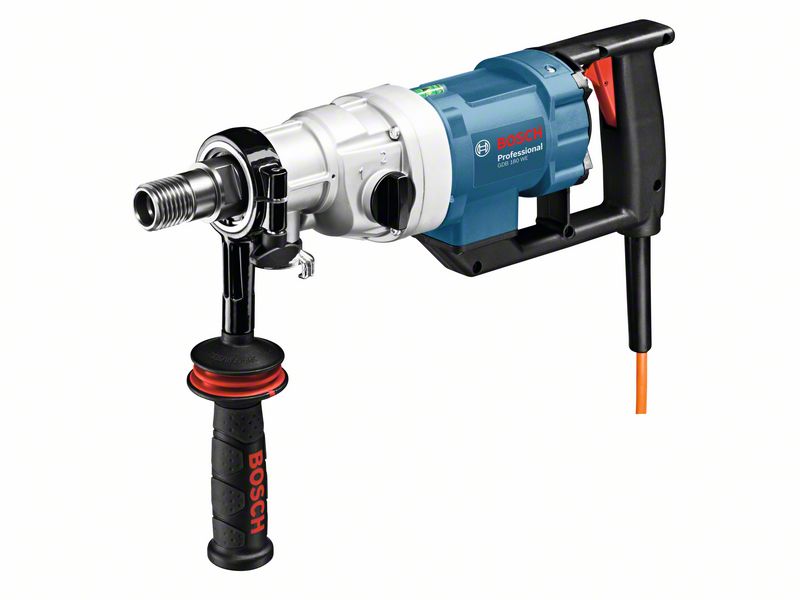

Diamond Drill GDB 180 WE, The GDB 180 WE Professional is a corded versatile 2-gear diamond drill suitable for both hand-held and stand-mounted operation. Its incredibly powerful 2,000 W motor facilitates breakthroughs in reinforced concrete of up to 180 mm in diameter. It is also extremely durable due to a robust design and a gearbox with oil-bath lubrication. Capable of wet and dry operation, this drill is perfect for versatile applications. This tool is intended for core drilling in concrete and reinforced concrete. It is compatible with the GCR 180 Professional stand as well as the Bosch Click & Clean dust extraction system. The GDB 180 WE Professional also features 2-gears. Dust extraction adapter; Ball valve; Carrying case
Article ID: 0601189800
ADDITIONAL INFORMATIONPackaging dimensions (length): 619 mm
Packaging dimensions (height): 146 mm
Packaging dimensions (width x length x height): 408 x 619 x 146 mm
Voltage, electrical: 230 V
Rated input power: 2.000 W
Weight: 5,2 kg
No-load speed, 1st gear: 900 rpm
No-load speed, 2nd gear: 2.800 rpm
No-load speed: 900/2,800 rpm
Drilling range: 180 mm
Tool holder: 1 1/4" UNC
Drill spindle connecting thread: 1 1/4" UNC
Tool dimensions (width): 109 mm
Tool dimensions (length): 481 mm
Tool dimensions (height): 294 mm
Suitability: Wet drilling in concrete
Concrete, possible range, from: 180 mm
Concrete, possible range: 180 mm
Masonry, possible range, from: 180 mm
Masonry, possible range: 180 mm
Vibration emission value ah [Drilling in concrete]: 4,8 m/s²
Uncertainty K [Drilling in concrete]: 1,5 m/s²
Product category subdivision: Diamond Drill
Positioning: Versatile 2-gear diamond drill for hand-held and stand-mounted operations
User benefit incl. Reason to believe: Incredibly powerful 2,000 W motor facilitates breakthroughs in reinforced concrete of up to 180 mm in diameter
User benefit incl. Reason to believe: Extremely durable due to a robust design and a gearbox with oil-bath lubrication
User benefit incl. Reason to believe: Wet and dry operation enables use in versatile applications
Positioning (BE): The compact powerhouse for drilling holes of up to 180 mm in concrete
User benefit incl. Reason to believe (BE): Powerful 2000 watt motor for breakthroughs in reinforced concrete up to 180 mm
User benefit incl. Reason to believe (BE): Long lifetime due to robust design and gearbox with oil-bath lubrication
User benefit incl. Reason to believe (BE): Wet and dry application; both hand-held and stand-mounted
Areas of application: Wet drilling in concrete
Areas of application: Wet drilling in stone
Areas of application: Dry drilling in stone
Title: Diamond Drill GDB 180 WE Professional
Novelty: no
Scope of supply: Dust extraction adapter
Scope of supply: Ball valve
Scope of supply: Carrying case
SOL Date: 28.01.2020
Scope of delivery:
1 ST Diamond Drill GDB 180 WE
