Robert Bosch Power Tools GmbH Dust Extraction Hammer with SDS plus GBH 2-23

Packaging dimensions (width): 330 mm
Packaging dimensions (length): 555 mm
Packaging dimensions (height): 150 mm
Packaging dimensions (width x length x height): 330 x 555 x 150 mm
Voltage, electrical: 230 V
Rated input power: 710 W
Impact energy (according to EPTA 05/2016): 2,3 J
Impact rate at rated speed, from: 0 bpm
Impact rate at rated speed, up to: 4.400 bpm
Impact rate at rated speed: 0 - 4,400 bpm
Rated speed, from: 0 rpm
Rated speed, up to: 1.000 rpm
Rated speed: 0 - 1,000 rpm
Weight: 3,6 kg
Weight without dust extraction unit: 2,9 kg
Weight with dust extraction unit: 3,6 kg
Weight without/with dust extraction unit: 2.9 / 3.6 kg
Tool dimensions (width): 84 mm
Tool dimensions (length): 500 mm
Tool dimensions (height): 209 mm
Tool holder: SDS plus
Drilling dia. concrete, hammer drill bits, from: 4 mm
Drilling dia. concrete, hammer drill bits, up to: 23 mm
Drilling dia. concrete, hammer drill bits: 4 - 23 mm
Rec. appl. range concrete, hammer drill bits, from: 4 mm
Rec. appl. range concrete, hammer drill bits, to: 12 mm
Opt. appl. range concrete, hammer drill bits: 4 - 12 mm
Min. dia. in concrete with core cutters: 12 mm
Drilling diameter in concrete with core cutters: 12 mm

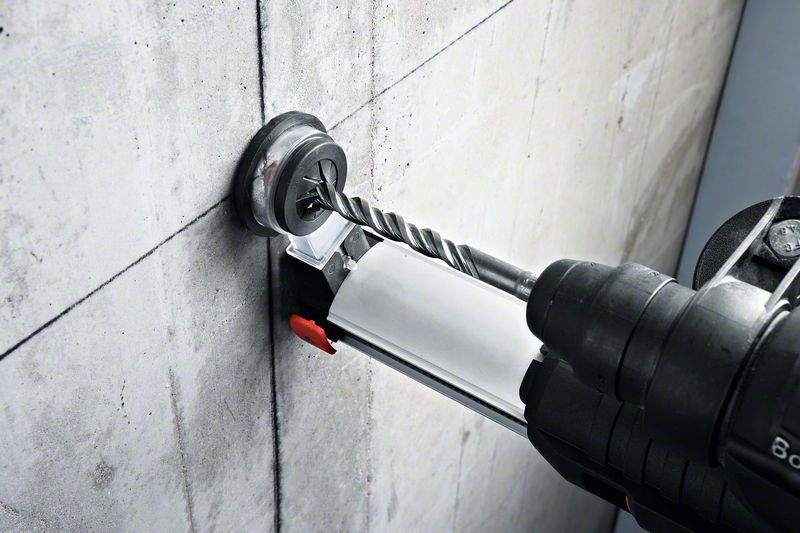

Drilling dia. concrete, dust extraction unit, from: 4 mm
Drilling dia. concrete, dust extraction unit, to: 16 mm
Drilling dia. concrete, dust extraction unit: 4 - 16 mm
Max. drilling diameter masonry, core cutters: 68 mm
Max. drilling diameter in metal: 13 mm
Max. drilling diameter in wood: 32 mm
Product category subdivision: Dust Extraction Hammer with SDS plus
Positioning: The most compact solution for dust-free drilling

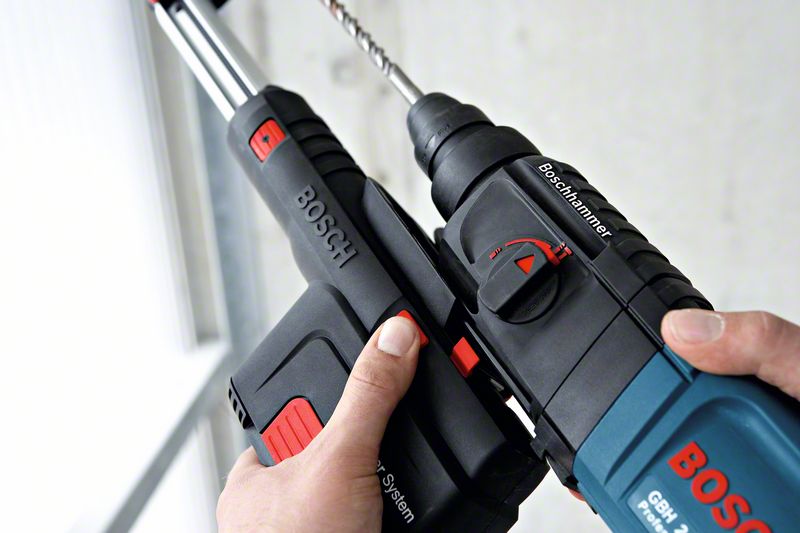

User benefit incl. Reason to believe: Integrated, removable dust extraction unit for clean, dust-free working

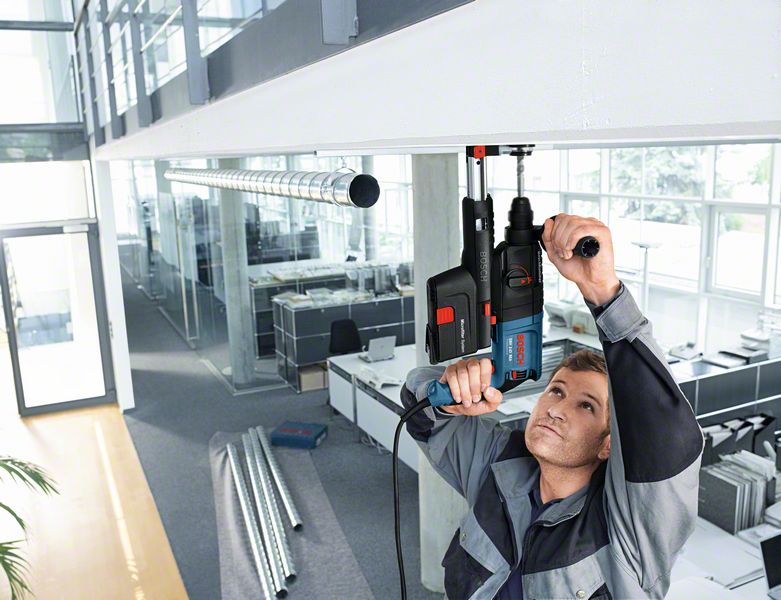

User benefit incl. Reason to believe: Comfortable working even overhead due to particularly compact design
User benefit incl. Reason to believe: Core cutter adapter set for dust extraction when working with core cutters (up to 68 mm) - can also be used with external extractor
Positioning (BE): The most compact solution for dust-free drilling
User benefit incl. Reason to believe (BE): Convenient working due to particularly compact design
User benefit incl. Reason to believe (BE): Integrated, removable dust extraction unit for clean, dust-free working
User benefit incl. Reason to believe (BE): Convenient working even overhead due to particularly compact design
Areas of application: Drilling in concrete
Areas of application: Drilling in ferrous metals
Areas of application: Drilling in wood
Areas of application: Drilling in synthetic material
Areas of application: Drilling in stone
Areas of application: Chiselling in concrete
Areas of application: Chiselling in wood
Areas of application: Chiselling in stone

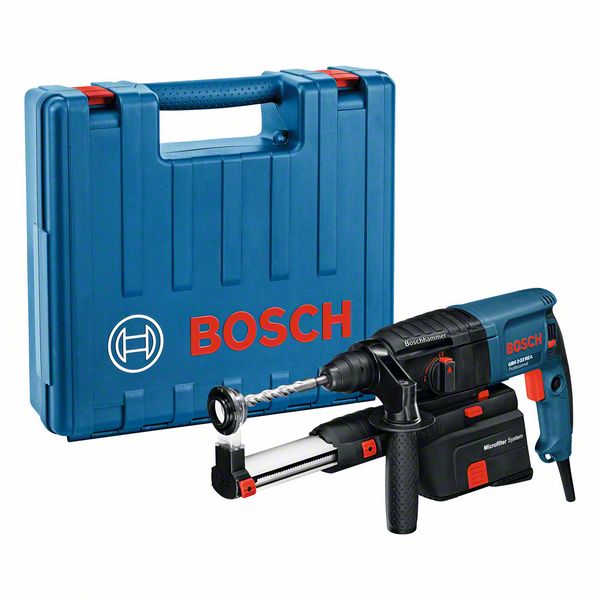

Title: Dust Extraction Hammer with SDS plus GBH 2-23 Professional
Novelty: no
Scope of supply: Machine cloth
Scope of supply: Carrying case
Scope of supply: Dust extraction unit
Scope of supply: Auxiliary handle (spare part number 1 619 P06 104)
Scope of supply: 5 x seal ring (spare part number 1 619 P04 548)
SOL Date: 01.10.2007


Scope of delivery:
1 ST Dust Extraction Hammer with SDS plus GBH 2-23
