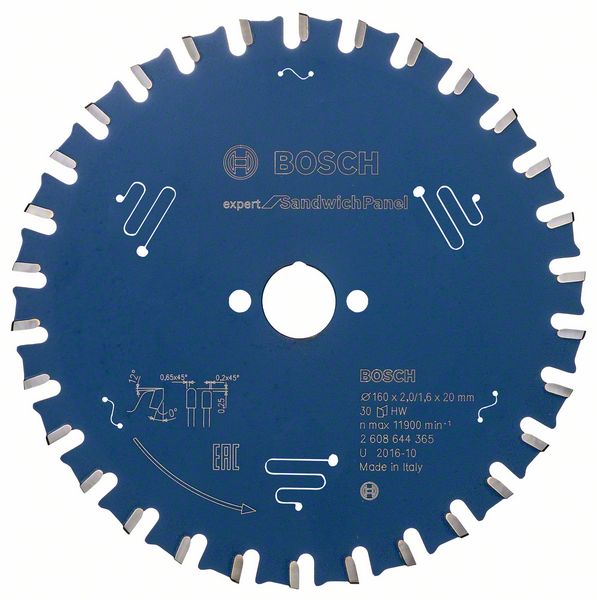

Robert Bosch Power Tools GmbH EX SH H 160×20-30. For hand-held circular saws
EX SH H 160×20-30. For hand-held circular saws
PRODUCT DESCRIPTION
The Expert for Sandwich Panel Circular Saw Blade offers a smooth performance in sandwich panel materials. A special tooth shape allows for cutting with ease through sheet steel, while keeping the connection between steel layers and insulation materials. The high-performance blade features unique extra-hard Microteq teeth that are manufactured in-house by Bosch from highly durable carbide grains. This performance is further supported by the blade´s Proteqtion coating that prevents corrosion and delivers reliable cutting while reducing friction. Additionally, this product is specially designed with anti-vibration slots for particularly smooth cutting, considerably less noise and significantly reduced vibration. Use this saw blade in sandwich panels with steel layers. The MTCG (Multi-Purpose Triple Chip Grind) tooth configuration of the Expert for Sandwich Panel Circular Saw Blade ensures a long lifetime even in tough applications.
Article ID: 2608644365
ADDITIONAL INFORMATIONBore size mm: 20

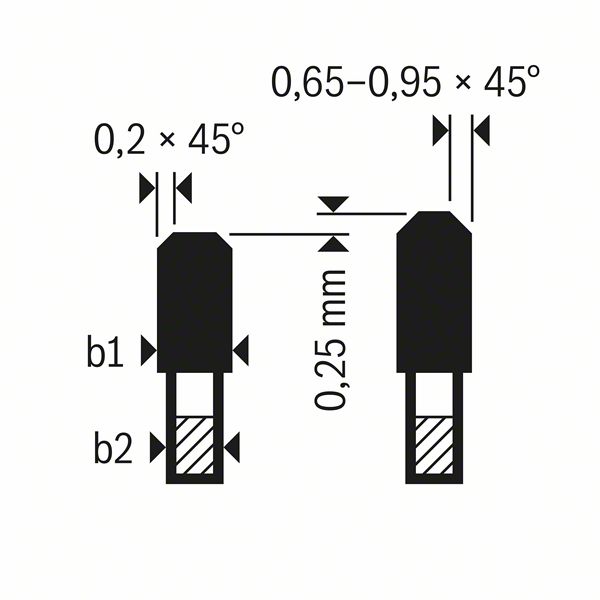

Width of cut (b1) mm: 2
Base blade thickness (b2) mm: 1,6
Width of cut (b1) mm / Base bl. thickness (b2) mm: 2/1.6
Number of teeth: 30
Tooth shape: HLTCG
Max. rotation speed (RPM): 11900
Cutting result: 3
Pin hole/Pitch circle diameter: 2/6/32.5
Hook angle ° ?: 0
Relief angle ° ?: 12
Benefit HL (short): Smooth Performance in Sandwich Panels
Performance Claim Text: Smooth Performance
(Version) Key RTB: Special tooth shape for cutting with ease through sheet steel, while keeping the connection between steel and insulation
Specific RTB1: Extra-hard Microteq teeth (Bosch in-house produced). Proteqtion coating prevents corrosion and reduces friction
Specific RTB2: Anti-vibration slots for particularly smooth cutting, considerably less noise and significantly reduced vibration
Specific RTB3: MTCG (Multi-Purpose Triple Chip Grind) tooth configuration ensures a long lifetime even in tough applications
Material: Metal sandwich
SOL Date: 01.10.2016
Novelty: no
Scope of delivery:
1 ST EX SH H 160x20-30. For hand-held circular saws
