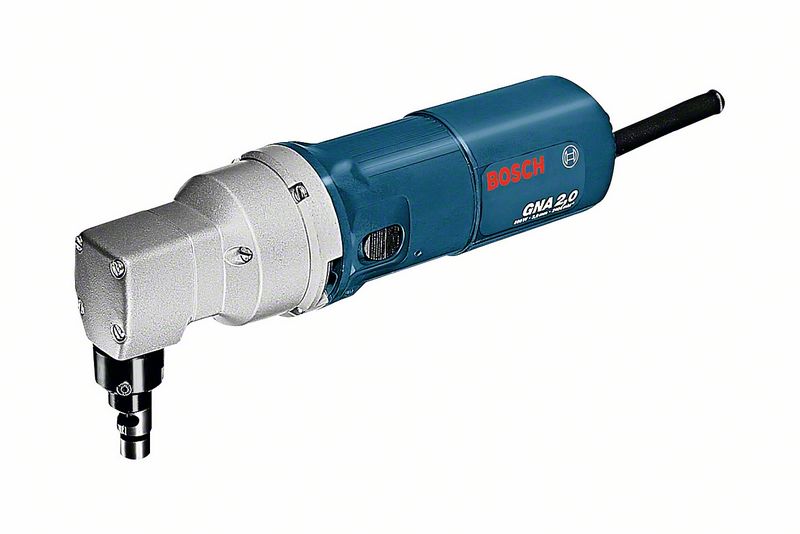

Robert Bosch Power Tools GmbH Nibbler GNA 2,0

Cutting capacity in aluminium (200 N/mm²), max.: 2,5 mm
Packaging dimensions (width): 170 mm
Packaging dimensions (length): 325 mm
Packaging dimensions (height): 87 mm
Packaging dimensions (width x length x height): 170 x 325 x 87 mm
Material that can be processed: Steel up to 400 N/mm² at 2.0 mm
Cutting track width: 6 mm
Pre-drilling for interior cut-outs: 16 mm
Smallest radius: 3 mm
Stroke rate under load: 1.500 spm
No-load stroke rate: 2.400 spm
Weight: 2,0 kg
Tool dimensions (length): 275 mm
Tool dimensions (height): 127 mm
Cutting capacity in steel (400 N/mm²), max.: 2,0 mm
Cutting capacity in steel (600 N/mm²), max.: 1,4 mm
Cutting capacity in steel (800 N/mm²), max.: 1,0 mm
Rated input power: 500 W
Power output: 270 W
Vibration emission value ah [Cutting sheet metal]: 9,0 m/s²
Uncertainty K [Cutting sheet metal]: 1,5 m/s²
Product category subdivision: Nibbler
Positioning: Bosch´s real all-rounder nibbler in the 500 W category
User benefit incl. Reason to believe: Swivel-mounted die plate supports perfect manoeuvrability in each direction as well as in corners
User benefit incl. Reason to believe: Ideal for cutting multiple metal materials of up to 2.0 mm
User benefit incl. Reason to believe: Excellent for making inner cutouts
Positioning (BE): The handy tool for cut-outs of all kinds
User benefit incl. Reason to believe (BE): 500 watts of power
User benefit incl. Reason to believe (BE): Slim, narrow design for optimum handling
User benefit incl. Reason to believe (BE): Swivel-mounted die plate for better manoeuvrability in corners
Title: Nibbler GNA 2,0 Professional
Novelty: no
Scope of supply: Hex key WAF 2.5 (spare part number 1 907 950 003)
Scope of supply: Die plate (2 608 639 900)
Scope of supply: Punch (2 608 639 013)
SOL Date: 18.07.2002


Scope of delivery:
1 ST Nibbler GNA 2,0
