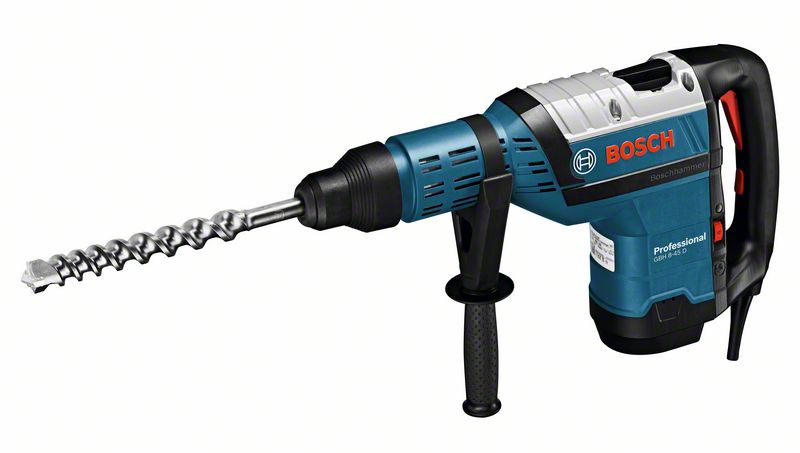

Robert Bosch Power Tools GmbH Rotary Hammer with SDS max GBH 8-45 D
Rotary Hammer with SDS max GBH 8-45 D
PRODUCT DESCRIPTION
Rotary Hammer with SDS max GBH 8-45 D, The GBH 8-45 D Professional is an all-round performer in the SDS max corded rotary hammer category due to its universal capabilities. Its perfect power-to-weight ratio enables it to easily perform many SDS max tasks. This rotary hammer also features robust metal components for durability. Its strong motor enables the delivery of 12.5 J of impact energy for a fast drilling progress and high material removal rate. This tool is intended for drilling up to 45 mm in diameter and medium chiselling work in concrete and stone. It is compatible with various dust attachments. The GBH 8-45 D Professional also includes features such as Constant Speed, Restart Protection, Rotation Control Clutch, and Speed Selection. Auxiliary handle (spare part number 1 612 025 004); Grease tube (spare part number 1 615 430 010); Machine cloth; Carrying case (spare part number 1 615 438 51A)
Article ID: 0611265100
ADDITIONAL INFORMATIONPackaging dimensions (length): 615 mm
Packaging dimensions (height): 145 mm
Packaging dimensions (width x length x height): 410 x 615 x 145 mm
Voltage, electrical: 230 V
Rated input power: 1.500 W
Impact energy (according to EPTA 05/2016): 12,5 J
Impact rate at rated speed, from: 1.380 bpm
Impact rate at rated speed, up to: 2.720 bpm
Impact rate at rated speed: 1,380 - 2,720 bpm
Rated speed, from: 0 rpm
Rated speed, up to: 305 rpm
Rated speed: 0 - 305 rpm
Weight: 8,2 kg
Tool dimensions (width): 116 mm
Tool dimensions (length): 540 mm
Tool dimensions (height): 310 mm
Tool holder: SDS max
Drilling dia. concrete, hammer drill bits, from: 12 mm
Drilling dia. concrete, hammer drill bits, up to: 45 mm
Drilling dia. concrete, hammer drill bits: 12 - 45 mm
Rec. appl. range concrete, hammer drill bits, from: 20 mm
Rec. appl. range concrete, hammer drill bits, to: 40 mm
Opt. appl. range concrete, hammer drill bits: 20 - 40 mm
Min. dia. in concrete with breakthrough drill bits: 80 mm
Max. dia. in concrete with breakthrough drill bits: 80 mm
Drilling dia. concrete, breakthrough drill bits: 80 - 80 mm
Min. dia. in concrete with core cutters: 125 mm
Drilling diameter in concrete with core cutters: 125 mm
Max. drilling diameter masonry, core cutters: 45 mm
Max. drilling diameter in metal: 125 mm
Max. drilling diameter in wood: 80 mm
Product category subdivision: Rotary Hammer with SDS max
Positioning: All-round performer in Boschs SDS max rotary hammer category
User benefit incl. Reason to believe: Perfect power-to-weight ratio for performing many SDS max tasks
User benefit incl. Reason to believe: Durable due to robust metal components
User benefit incl. Reason to believe: Powerful motor enables the delivery of 12.5 J of impact energy for fast drilling and high removal rate
Positioning (BE): Powerful 1,500 watt and highest sturdiness!
User benefit incl. Reason to believe (BE): Top performance when drilling and chiselling thanks to 1500 watt motor and 12.5 joules of single impact energy
User benefit incl. Reason to believe (BE): Exceptional durability thanks to robust components
User benefit incl. Reason to believe (BE): Automatic switch lock for the best convenience in continuous chiselling applications
Areas of application: Drilling in concrete
Areas of application: Drilling in stone
Areas of application: Chiselling in concrete
Areas of application: Chiselling in natural materials
Areas of application: Chiselling in stone
Title: Rotary Hammer with SDS max GBH 8-45 D Professional
Novelty: no
Scope of supply: Auxiliary handle (spare part number 1 612 025 004)
Scope of supply: Grease tube (spare part number 1 615 430 010)
Scope of supply: Machine cloth

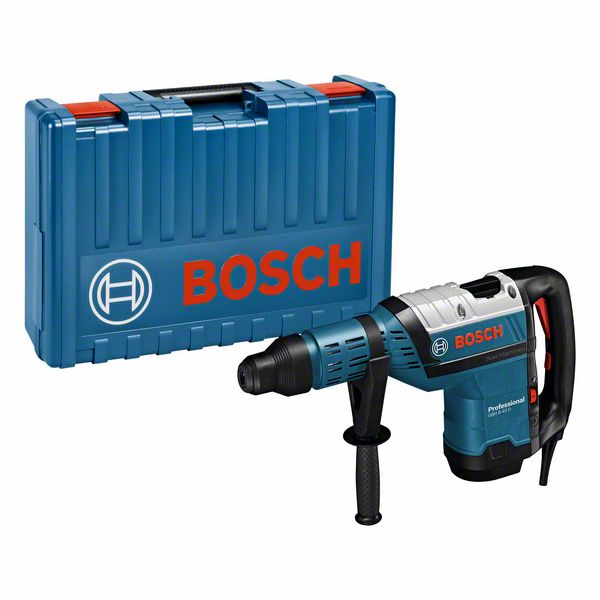

Scope of supply: Carrying case (spare part number 1 615 438 51A)
SOL Date: 01.04.2014
Scope of delivery:
1 ST Rotary Hammer with SDS max GBH 8-45 D
