Robert Bosch Power Tools GmbH Rotary Hammer with SDS plus GBH 3-28 DRE
Rotary Hammer with SDS plus GBH 3-28 DRE
PRODUCT DESCRIPTION

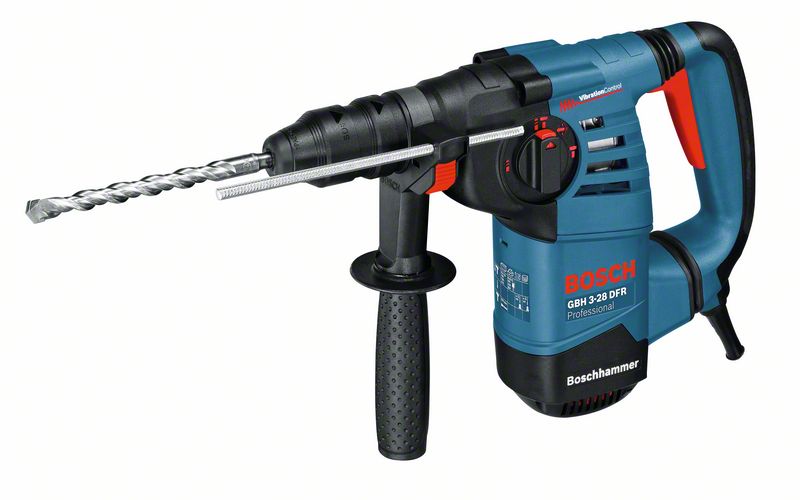

Rotary Hammer with SDS plus GBH 3-28 DRE, The GBH 3-28 DFR Professional is the most versatile tool in Boschs SDS plus corded rotary hammer category. Its compact housing enables multiple applications in narrow and tight workspaces. Designed for convenience, its L-shaped design provides a balanced weight distribution, while its Vibration Control allows effortless continuous work. It also features a high power-to-weight ratio, with an 800 W motor and a tool weight of only 3.6 kg. This tool is intended for drilling and light chiselling in concrete, masonry, wood, and metal. It is compatible with various dust attachments. The GBH 3-28 DFR Professional also features a keyless chuck for round shaft drill bits, a quick-change chuck (SDS plus), Reverse Mode, Rotation Control Clutch, Variable Speed, and Vario-Lock. Auxiliary handle (2 602 025 191); Carrying case (2 605 438 651); Depth stop 210 mm (1 613 001 010); Grease tube (spare part number 1 615 430 010); Machine cloth
Article ID: 061123A000
ADDITIONAL INFORMATIONPackaging dimensions (width): 360 mm
Packaging dimensions (length): 480 mm
Packaging dimensions (height): 130 mm
Packaging dimensions (width x length x height): 360 x 480 x 130 mm
Voltage, electrical: 230 V
Rated input power: 800 W
Impact energy (according to EPTA 05/2016): 3,1 J
Impact rate at rated speed, from: 0 bpm
Impact rate at rated speed, up to: 4.000 bpm
Impact rate at rated speed: 0 - 4,000 bpm
Rated speed, from: 0 rpm
Rated speed, up to: 900 rpm
Rated speed: 0 - 900 rpm
Weight: 3,5 kg
Tool dimensions (width): 354 mm
Tool dimensions (length): 233 mm
Tool holder: SDS plus
Drilling dia. concrete, hammer drill bits, from: 4 mm
Drilling dia. concrete, hammer drill bits, up to: 28 mm
Drilling dia. concrete, hammer drill bits: 4 - 28 mm
Rec. appl. range concrete, hammer drill bits, from: 12 mm
Rec. appl. range concrete, hammer drill bits, to: 18 mm
Opt. appl. range concrete, hammer drill bits: 12 - 18 mm
Max. drilling diameter masonry, core cutters: 82 mm
Max. drilling diameter in metal: 13 mm
Max. drilling diameter in wood: 30 mm
Product category subdivision: Rotary Hammer with SDS plus
Positioning: Most versatile rotary hammer performance in the SDS plus category
User benefit incl. Reason to believe: Compact housing enables various applications in narrow and tight spaces
User benefit incl. Reason to believe: L-shaped design and Vibration Control for continuous effortless work
User benefit incl. Reason to believe: High power-to-weight ratio with 800 W motor and tool weight of 3.6 kg
Positioning (BE): Top performance with 20% less vibration
User benefit incl. Reason to believe (BE): High drilling rate and 20% higher chiselling power than other rotary hammers in its class
User benefit incl. Reason to believe (BE): 20% less vibration than other hammers in its class for more comfortable working due to Bosch Vibration Control
User benefit incl. Reason to believe (BE): Quick-change chuck for fast changes between drilling with impact in concrete and drilling without impact in wood and metal

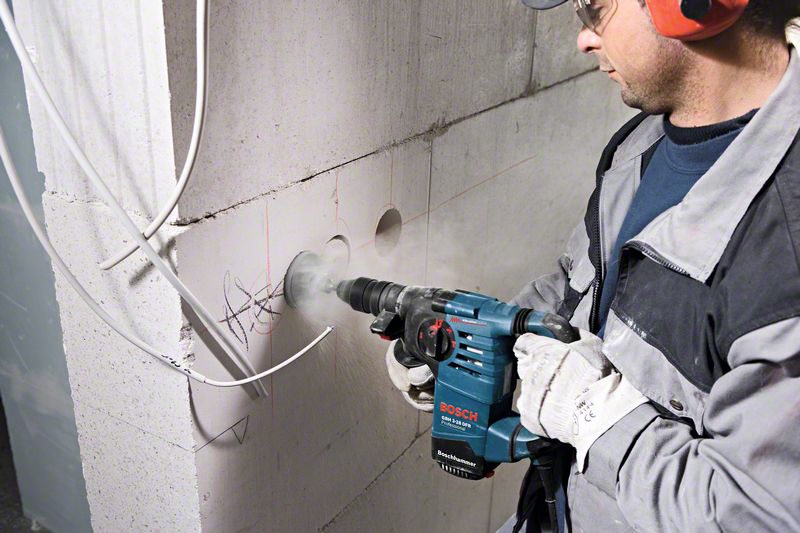

Areas of application: Drilling in concrete
Areas of application: Drilling in ferrous metals

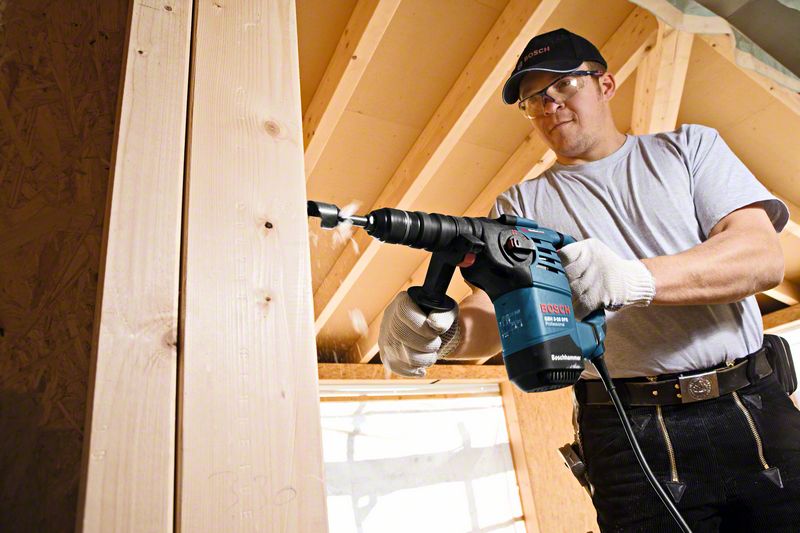

Areas of application: Drilling in wood
Areas of application: Drilling in synthetic material
Areas of application: Drilling in non-ferrous metal
Areas of application: Drilling in stone
Areas of application: Dry drilling in stone

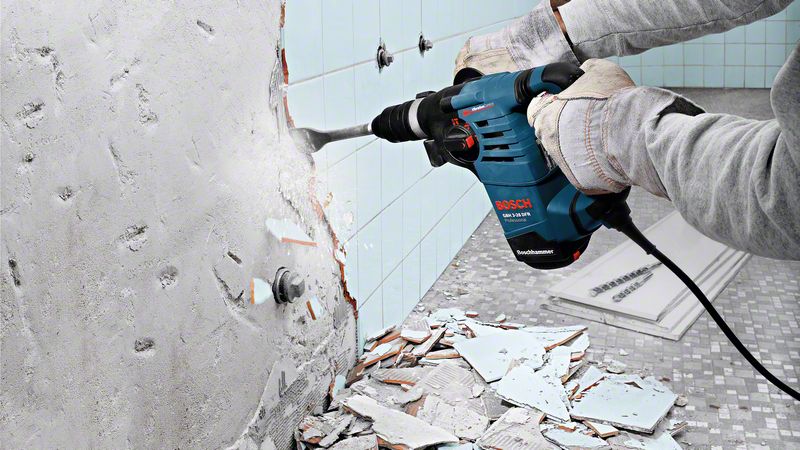

Areas of application: Chiselling in concrete
Areas of application: Chiselling in wood
Areas of application: Chiselling in stone
Areas of application: Screwdriving
Title: Rotary Hammer with SDS plus GBH 3-28 DRE Professional
Novelty: no
Scope of supply: Auxiliary handle (2 602 025 191)

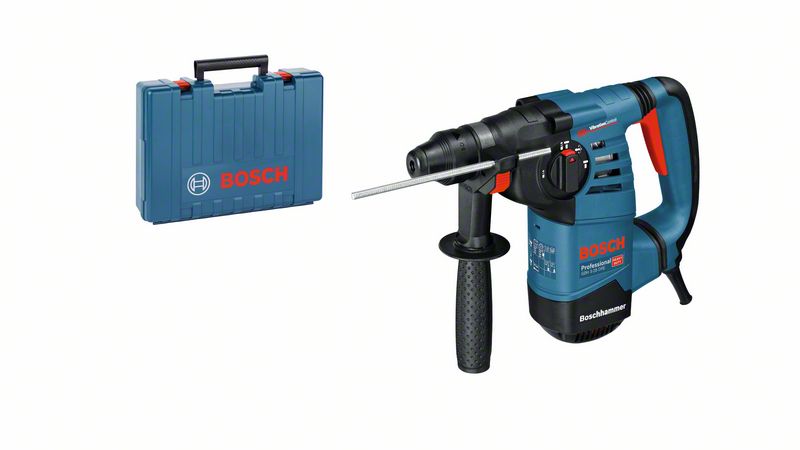

Scope of supply: Carrying case (2 605 438 651)
Scope of supply: Depth stop 210 mm (1 613 001 010)
Scope of supply: Grease tube (spare part number 1 615 430 010)
Scope of supply: Machine cloth
SOL Date: 01.03.2009
Scope of delivery:
1 ST Rotary Hammer with SDS plus GBH 3-28 DRE
