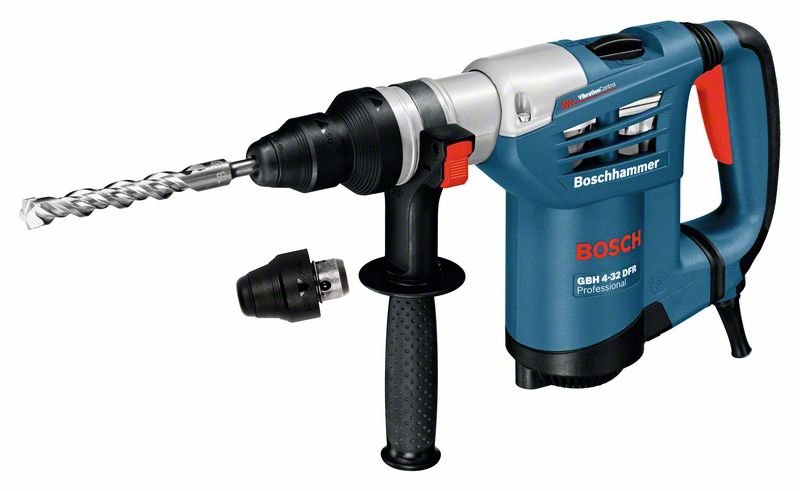

Robert Bosch Power Tools GmbH Rotary Hammer with SDS plus GBH 4-32 DFR

Rated speed, from: 0 rpm
Rated speed, up to: 800 rpm
Rated speed: 0 - 800 rpm
Packaging dimensions (width): 360 mm
Packaging dimensions (length): 440 mm
Packaging dimensions (height): 155 mm
Packaging dimensions (width x length x height): 360 x 440 x 155 mm
Voltage, electrical: 230 V
Rated input power: 900 W
Impact energy (according to EPTA 05/2016): 4,2 J
Impact rate at rated speed, from: 0 bpm
Impact rate at rated speed, up to: 3.600 bpm
Impact rate at rated speed: 0 - 3,600 bpm
Weight: 4,7 kg
Tool dimensions (width): 377 mm
Tool dimensions (length): 493 mm
Tool dimensions (height): 133 mm
Tool holder: SDS plus
Drilling dia. concrete, hammer drill bits, from: 6 mm
Drilling dia. concrete, hammer drill bits, up to: 32 mm
Drilling dia. concrete, hammer drill bits: 6 - 32 mm
Rec. appl. range concrete, hammer drill bits, from: 14 mm
Rec. appl. range concrete, hammer drill bits, to: 25 mm
Opt. appl. range concrete, hammer drill bits: 14 - 25 mm
Max. drilling diameter masonry, core cutters: 90 mm
Max. drilling diameter in metal: 13 mm
Max. drilling diameter in wood: 32 mm
Product category subdivision: Rotary Hammer with SDS plus
Positioning: Robustness combined with durability and excellent performance in the SDS plus category
User benefit incl. Reason to believe: 900 W motor delivers 4.2 J of impact energy for very fast chisel removal rates
User benefit incl. Reason to believe: Durable due to robust metal gearbox housing design
User benefit incl. Reason to believe: Vibration Control for effortless and continuous work in time-intensive applications
Positioning (BE): The fastest multi-hammer in the 4kg class
User benefit incl. Reason to believe (BE): Wide range of applications in chiselling and drilling work and when working with a core cutter
User benefit incl. Reason to believe (BE): Drills up to 30% faster (25 mm diameter) than other tools in its class
User benefit incl. Reason to believe (BE): Low vibration levels of only 12 m/s² for less tiring work due to Bosch Vibration Control
Areas of application: Drilling in concrete
Areas of application: Drilling in ferrous metals

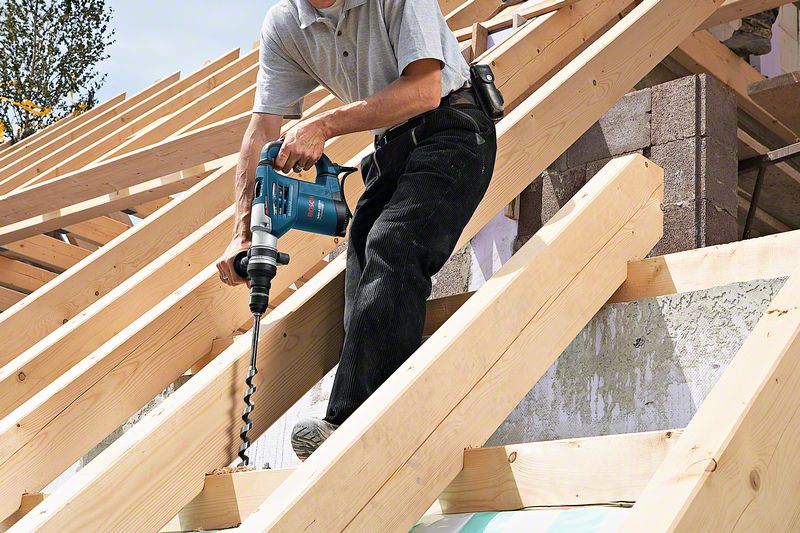

Areas of application: Drilling in wood
Areas of application: Drilling in synthetic material
Areas of application: Drilling in non-ferrous metal
Areas of application: Drilling in stone
Areas of application: Dry drilling in stone

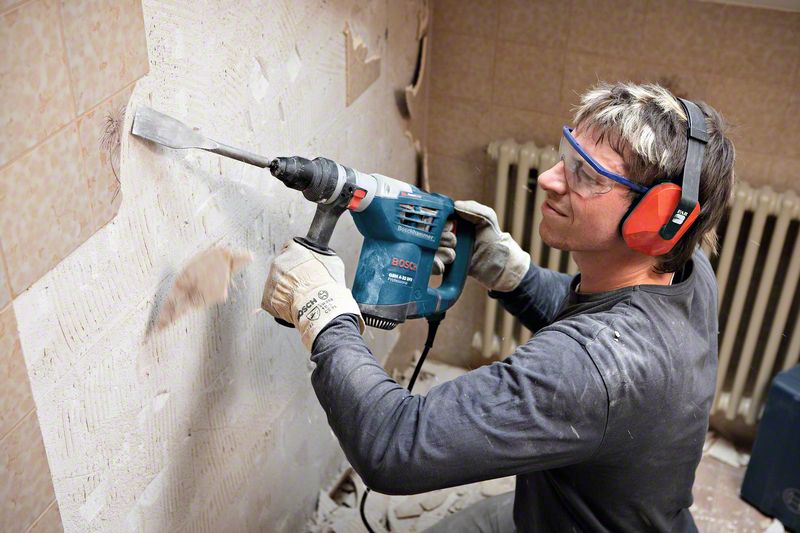

Areas of application: Chiselling in concrete
Areas of application: Chiselling in wood
Areas of application: Chiselling in stone
Areas of application: Screwdriving
Title: Rotary Hammer with SDS plus GBH 4-32 DFR Professional
Novelty: no

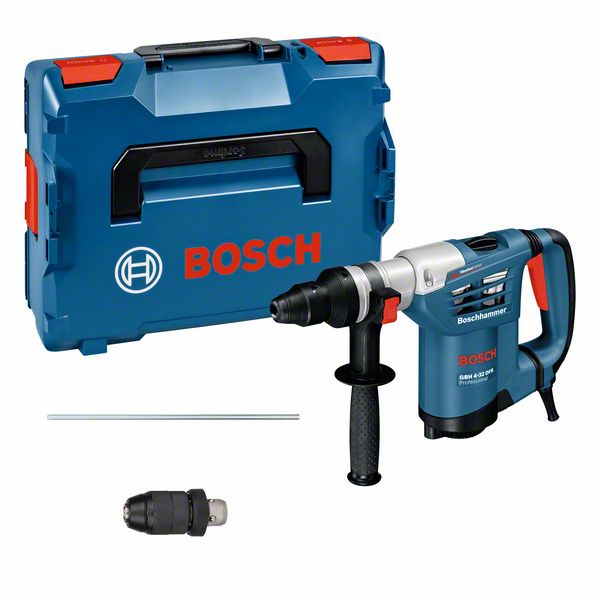

Scope of supply: Depth stop 310 mm (1 613 001 003)
Scope of supply: Machine cloth
Scope of supply: L-BOXX 136 (1 600 A01 2G0)
Scope of supply: Quick change chuck 13 mm (2 608 572 212)
Scope of supply: SDS plus quick-change chuck (2 608 572 213)
Scope of supply: Auxiliary handle (2 602 025 176)
Scope of supply: Grease tube (spare part number 1 615 430 010)
Scope of supply: 1/1 L-BOXX inlay for tool (1 600 A00 2VH)
SOL Date: 01.08.2010


Scope of delivery:
1 ST Rotary Hammer with SDS plus GBH 4-32 DFR
