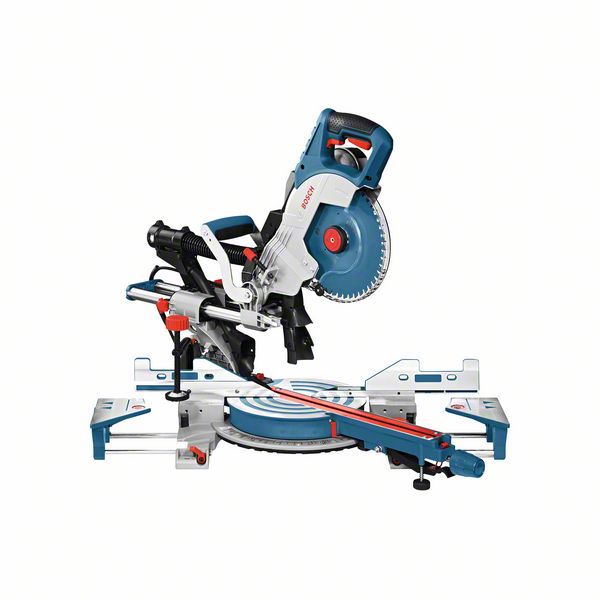

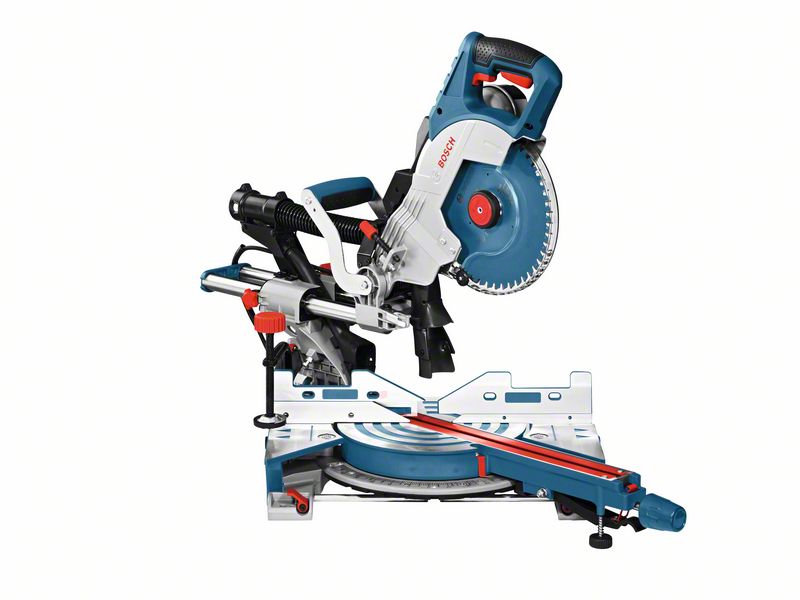

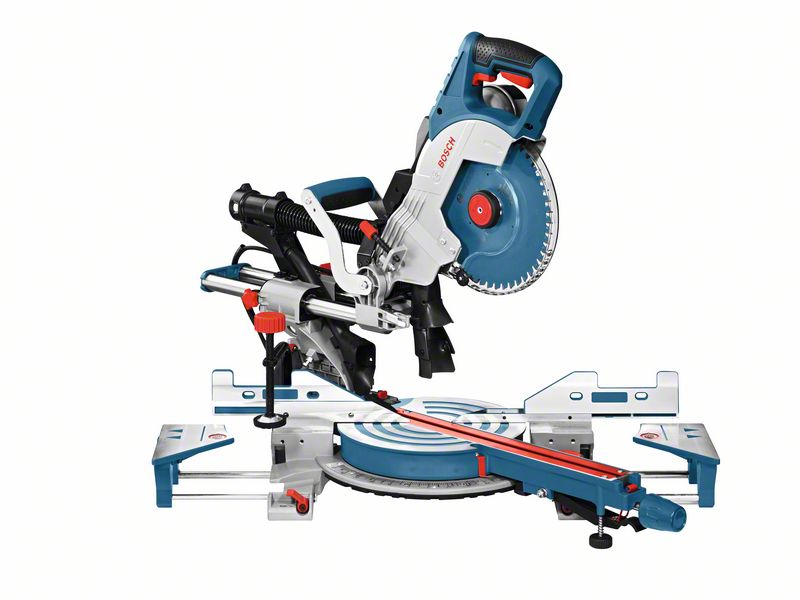

Robert Bosch Power Tools GmbH Sliding Mitre Saw GCM 8 SDE
Sliding Mitre Saw GCM 8 SDE
PRODUCT DESCRIPTION

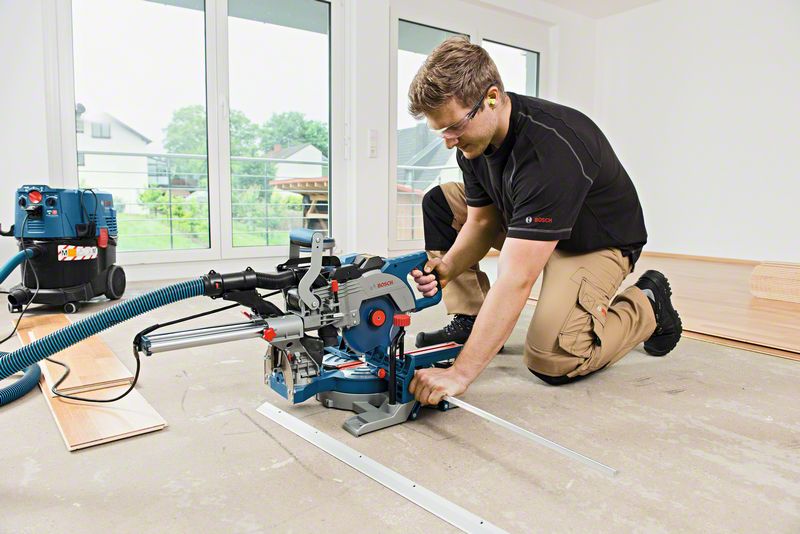

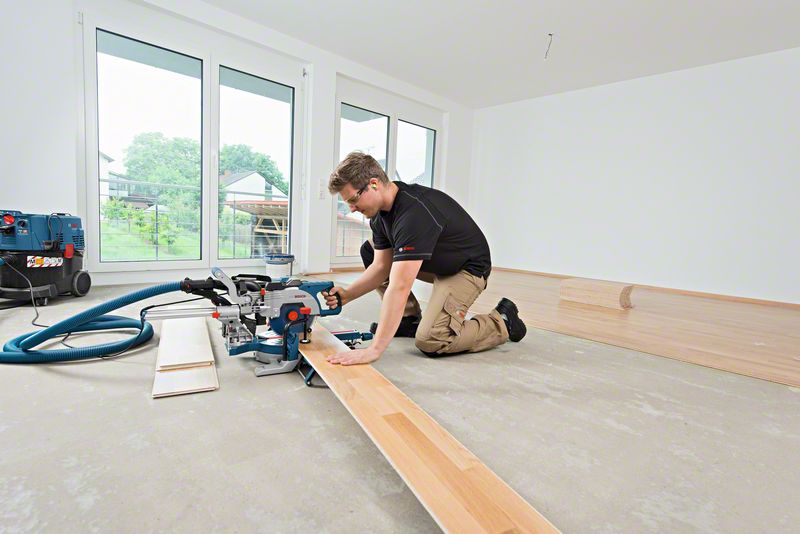

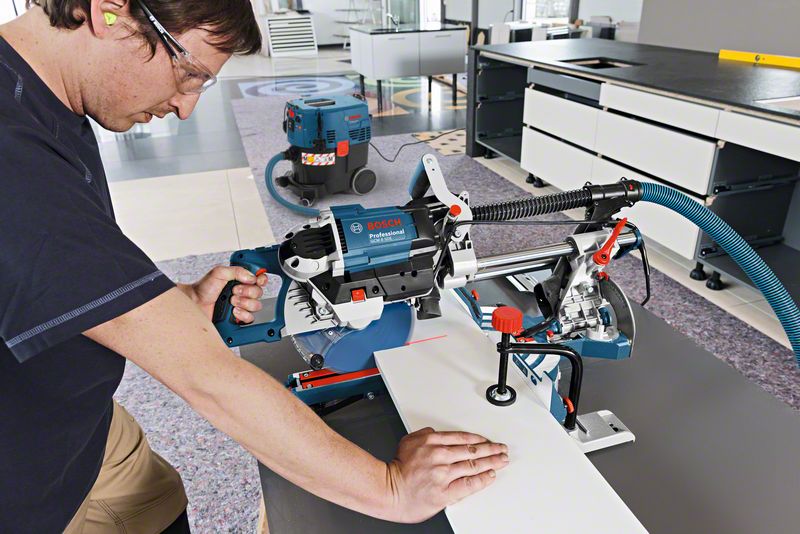

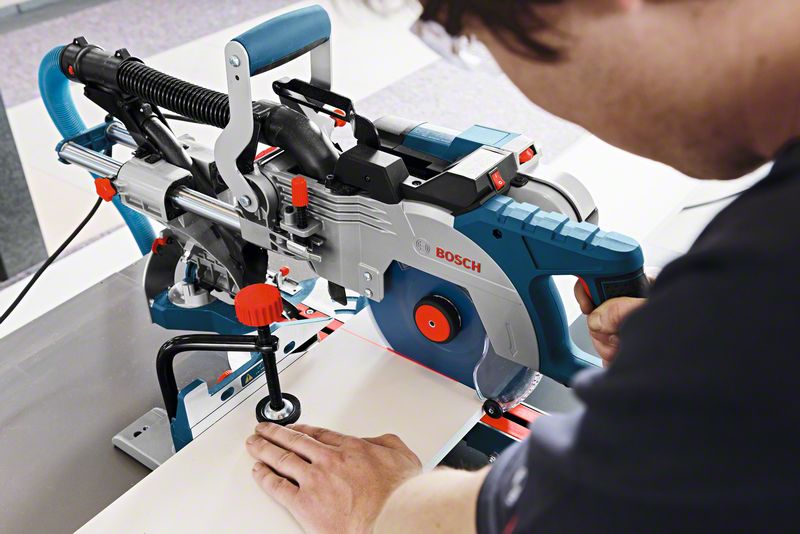

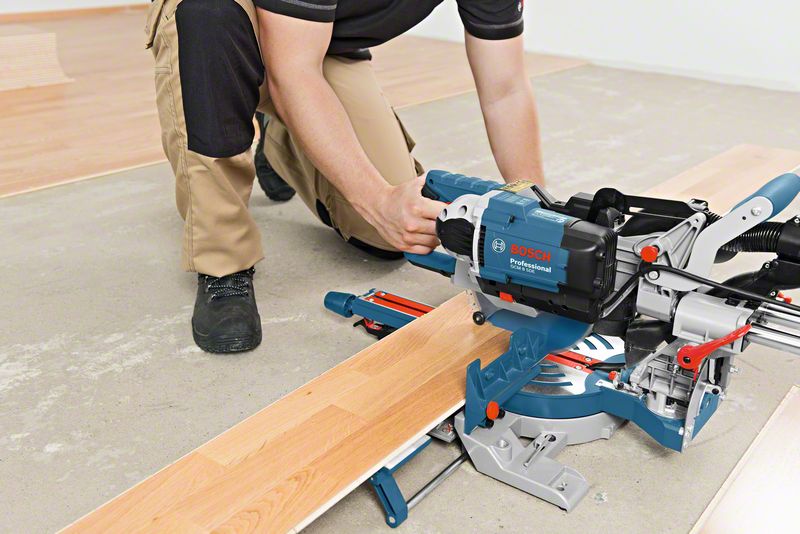

Sliding Mitre Saw GCM 8 SDE, Power and flexibility in one: The GCM 8 SDE Professional allows quick and precise work in almost any type of material. Its convenient, one-handed transport handle makes it lightweight and compactly designed for jobs on the go. Variable cutting speed enables high flexibility when cutting materials like plastic and aluminium. For highest convenience, it ensures quick and tool-less sawblade changes. This mitre saw is intended for cross, mitre, bevel and groove cuts in wood, timber beams, and wood composites as well as board materials, floor panels, aluminium, and plastic. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands. The GCM 8 SDE Professional also includes features such as 2-point dust extraction, bevel detent turrent, precision laser, soft start, double-sided tilt adjustment, and speed selection. Clamp (1 609 B04 224); 1 x circular saw blade, Expert for Wood, 216 x 30 x 2.4 mm, 48 (2 608 642 497); SDS saw blade lock (spare part number 1 609 B05 323)
Article ID: 0601B19200
ADDITIONAL INFORMATIONVoltage, up to: 240 V
Voltage: 230 - 240 V
Packaging dimensions (width): 472 mm
Packaging dimensions (length): 845 mm
Packaging dimensions (height): 440 mm
Packaging dimensions (width x length x height): 472 x 845 x 440 mm
Saw blade diameter: 216 mm
Saw blade bore diameter: 30 mm
Rated input power: 1.600 W
Cutting capacity at 0°, height: 70 mm
Cutting capacity at 0°, width: 312 mm
Cutting capacity, 0°: 70 x 312 mm
Cutting capacity at 45° mitre, height: 70 mm
Cutting capacity at 45° mitre, width: 214 mm
Cutting capacity, 45° mitre: 70 x 214 mm
Cutting capacity at 45° bevel, height: 48 mm
Cutting capacity at 45° bevel, width: 312 mm
Cutting capacity, 45° bevel: 48 x 312 mm
Mitre setting, left: 52 °
Mitre setting, right: 60 °
Mitre setting: 52 ° L / 60 ° R
Bevel setting, left: 47 °
Bevel setting, right: 47 °
Bevel setting: 47 ° L / 47 ° R
Tool dimensions (width): 910 mm
Tool dimensions (length): 460 mm
Tool dimensions (height): 410 mm
Tool dimensions (width x length x height): 910 x460 x410 mm
No-load speed, from: 3.500 rpm
No-load speed, up to: 5.000 rpm
No-load speed: 3,500 - 5,000 rpm
Weight: 18,5 kg
Vibration emission value ah [Sawing wood]: 2,5 m/s²
Uncertainty K [Sawing wood]: 1,5 m/s²
Product category subdivision: Sliding Mitre Saw
Positioning: Powerful mitre saw for various applications and materials
User benefit incl. Reason to believe: Lightweight and compact, with convenient transport handle for one-handed transport and high mobility
User benefit incl. Reason to believe: Variable cutting speed ensures high versatility in various materials
User benefit incl. Reason to believe: Fast, tool-less saw blade changes ensure easy and convenient handling
Positioning (BE): 8" sliding mitre saw with variable speed and dual bevel capability
User benefit incl. Reason to believe (BE): Variable speed for cutting different materials
Title: Sliding Mitre Saw GCM 8 SDE Professional
Novelty: no
Scope of supply: Clamp (1 609 B04 224)
Scope of supply: 1 x circular saw blade, Expert for Wood, 216 x 30 x 2.4 mm, 48 (2 608 642 497)
Scope of supply: SDS saw blade lock (spare part number 1 609 B05 323)
SOL Date: 30.11.2020
Scope of delivery:
1 ST Sliding Mitre Saw GCM 8 SDE
