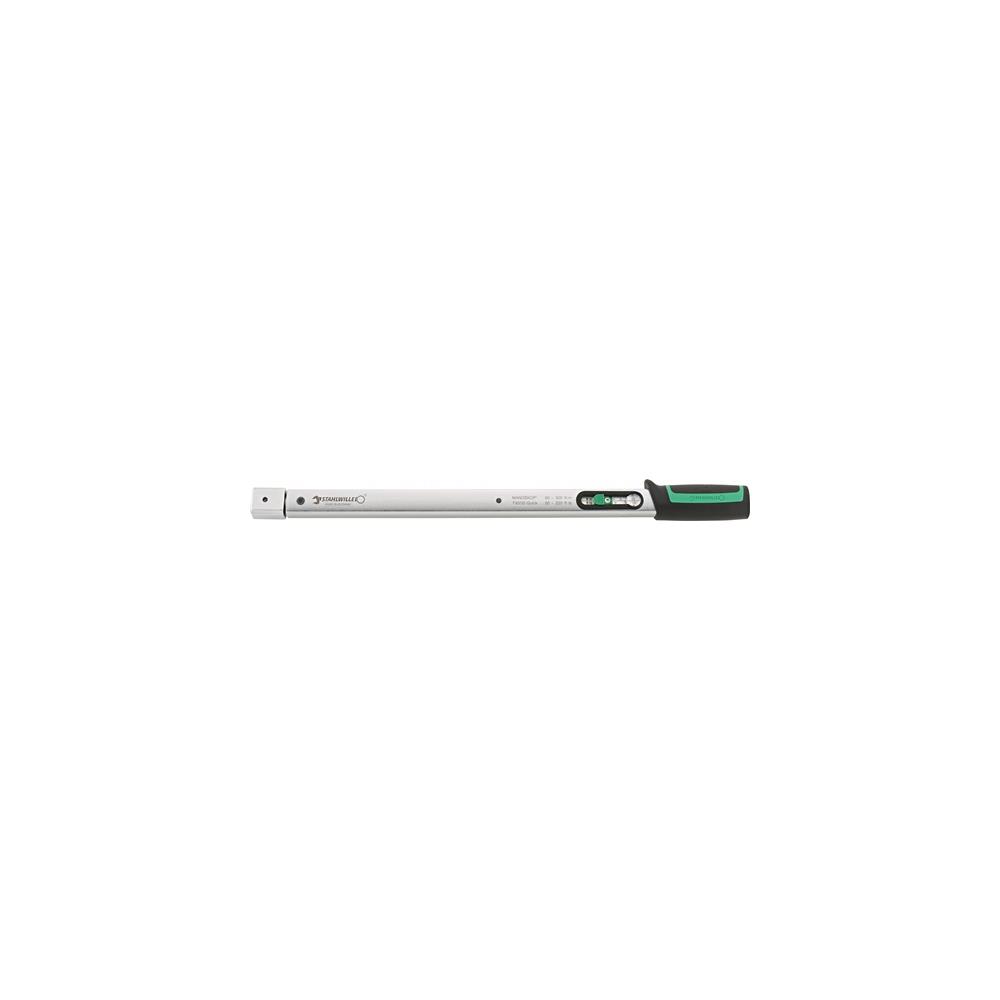

STAHLWILLE Torque spanner 730/30 Quick 60-300 Nm 14 x 18 mm
Torque spanner 730/30 Quick 60-300 Nm 14 x 18 mm
PRODUCT DESCRIPTION
With mounting for insertion tools
– For controlled clockwise and anti-clockwise tightening
– Releasing
– QuickRelease safety lock
– Fast setting with clamping lever in handle
– Double-stop signal
– Double Nm/ft scale
-lb and Nm/in
-lb
– Anti-clockwise tightening by reversing insert tools
– Accuracy tolerance +/- 4 % from pre-set value
– Special feature: No resetting to “0” required, since clutch is loaded only while tightening
– Continued tightening after release or loading against operating direction, e.g., with stuck screws, do not act on the release mechanism, protecting it from damage Further technical information:
– Certificate: Yes
– Subject to audit: Yes Includes calibration certificate in accordance with DIN EN ISO 6789-2:2017 and operating instructions Supplied with transparent plastic tubes
Work area Nm: 60 - 300 Nm
Scale division: 10 Nm
Work area lbf.in lbf.ft.: 50 - 220 lbf.ft
Mount mm: 14 x 18 mm
Length: 500 mm
Brand: STAHLWILLE
Scope of delivery:
1,00 ST Torque spanner 730/30 Quick 60-300 Nm 14 x 18 mm
