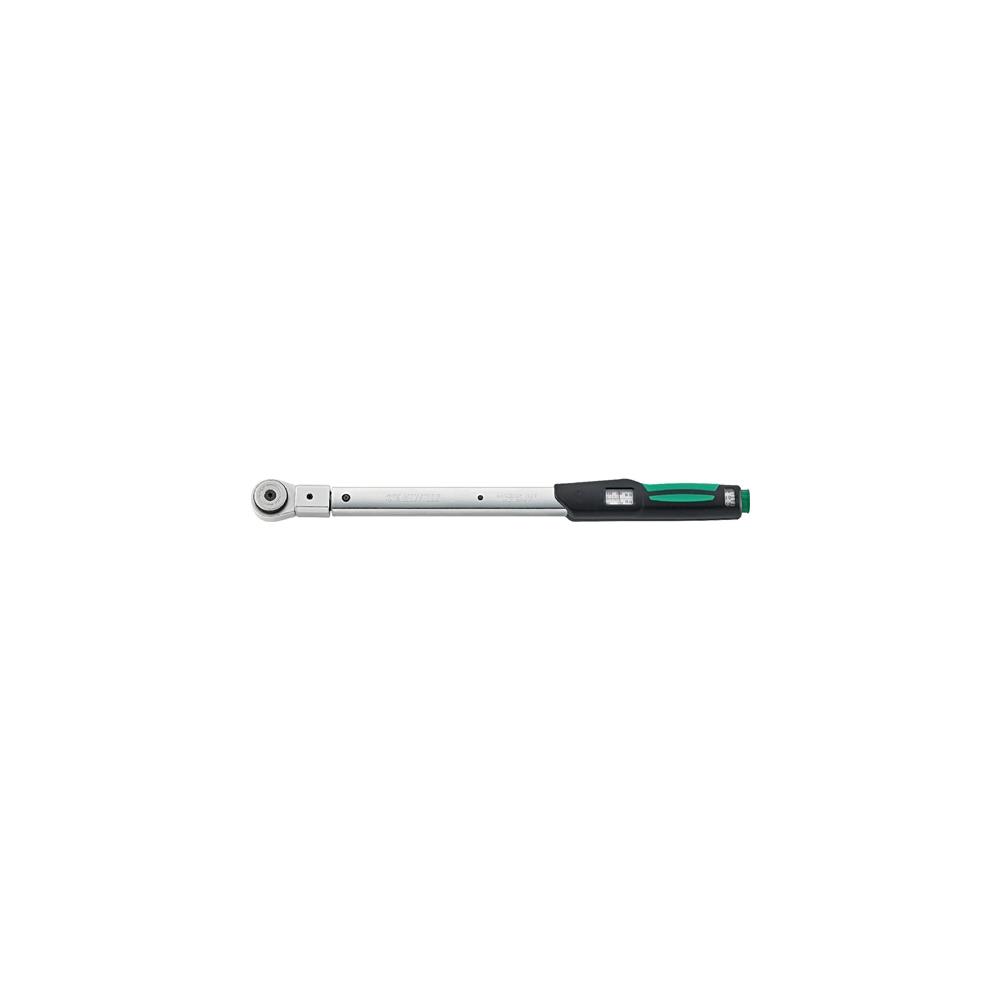

STAHLWILLE Torque spanner 730NR/20FK 1/2 inch 40-200 Nm
Torque spanner 730NR/20FK 1/2 inch 40-200 Nm
PRODUCT DESCRIPTION
With built-in ratchet
– For controlled clockwise tightening
– Releasing
– Quick-adjustment feature for fast setting
– Double-stop signal
– Clearly legible double scale with coloured differentiation of Nm/ft
-lb and ft
-lb/in
-lb
– 2-component handle (resistant to oil, grease, fuel, brake fluid and Skydrol)
– Accuracy tolerance +/- 4 % from pre-set value
– Special feature: No resetting to “0” required, since clutch is loaded only while tightening
– Continued tightening after release or loading against operating direction, e.g., with stuck screws, do not act on the release mechanism, protecting it from damage 4000 826 536 and 4000 826 537 with QuickRelease safety lock Further technical information:
– Type: Reversible ratchet
– Certificate: Yes
– Subject to audit: Yes Includes calibration certificate in accordance with DIN EN ISO 6789-2:2017 and operating instructions Supplied with transparent plastic tubes
Work area Nm: 40 - 200 Nm
Scale division: 10 Nm
Work area lbf.in lbf.ft.: 30 - 150 lbf.ft
Length: 513.5 mm
Square drive mm: 12.5 mm
Brand: STAHLWILLE
Square drive: 1/2
Scope of delivery:
1,00 ST Torque spanner 730NR/20FK 1/2 inch 40-200 Nm
