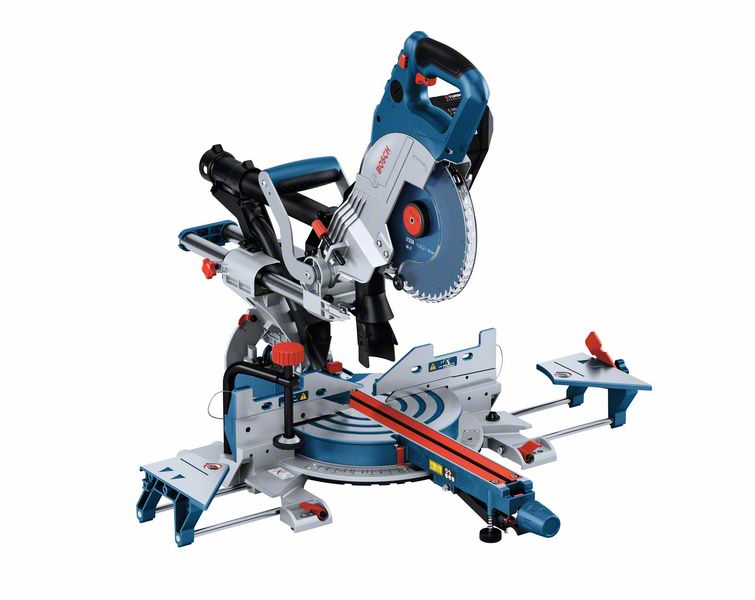

Robert Bosch Power Tools GmbH Cordless Mitre Saw BITURBO GCM 18V-216 DC
Cordless Mitre Saw BITURBO GCM 18V-216 DC
PRODUCT DESCRIPTION

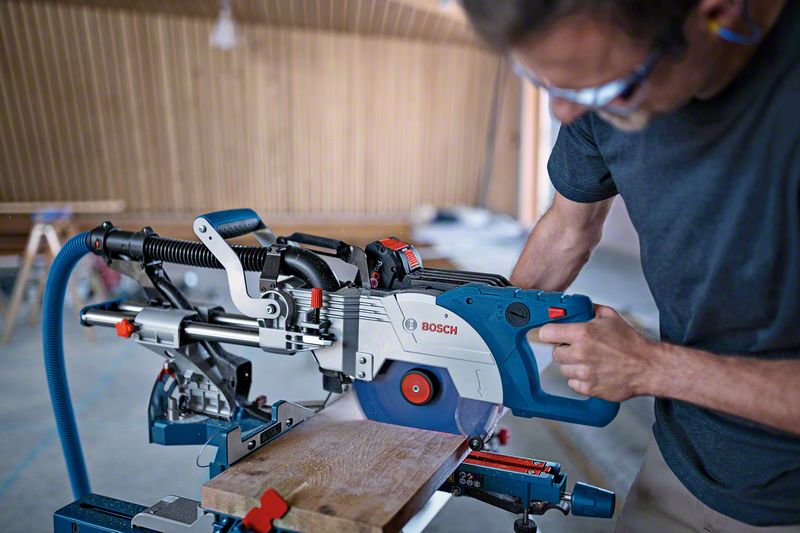

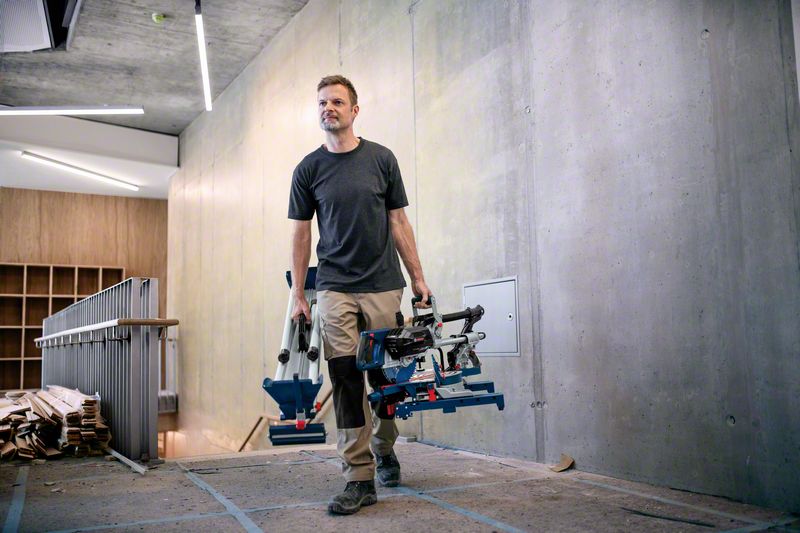

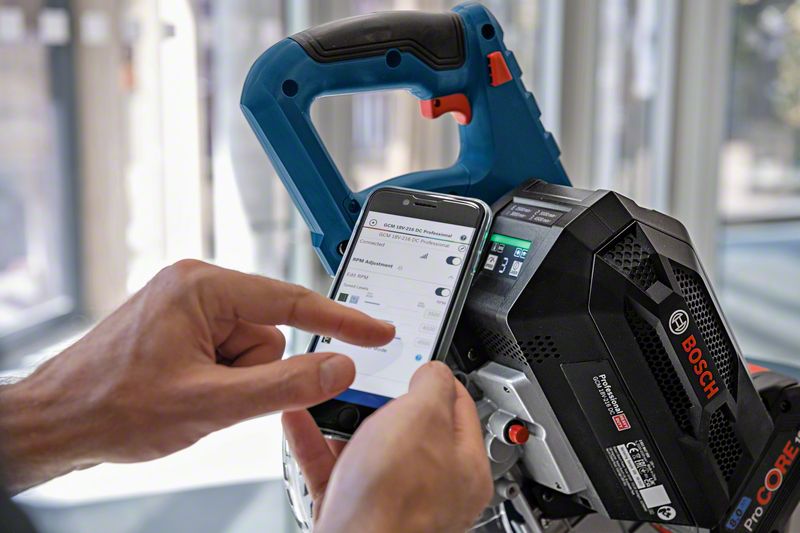

Cordless Mitre Saw BITURBO GCM 18V-216 DC, GCM 18V-216 DC Professional reaches a large cutting capacity of 70×300 mm and the power of a corded 1,600 W mitre saw thanks to its BITURBO Brushless technology. It offers a two-point dust extraction for a cleaner and healthier working environment and, even when its integrated side extensions are increasing workpiece control, it remains compact and easy to transport. Versatile usage in different materials due to speed selection and ECO mode for extended runtime via the user interface. Further customisation by using the Toolboxx app. The GCM 18V-216 DC is perfect for cross, mitre, and bevel cuts in timber beams and wooden composites as well as floor panels, aluminium, and plastic. It is compatible with the Click & Clean System, all Bosch GTA mitre saw stands, and all Professional 18 V batteries and chargers (Bosch Professional 18V System). For maximum power, use ProCORE18V 5.5 Ah. It also features a LED light and a dual bevel function. 1 x circular saw blade, Expert for Wood, 216 x 30 x 1.7 mm, 48 (2 608 644 519); 1 x Bluetooth Low Energy module GCY 42 Professional (1 600 A01 6NH); SDS saw blade lock (spare part number 1 609 B05 323); Clamp (1 609 B04 224); Stop plate (1 609 B02 365); Screw (1 609 B00 263); Wrench Socket (1 609 B06 988); Cardboard box
Article ID: 0601B47000
ADDITIONAL INFORMATIONTool dimensions (length): 569 mm
Tool dimensions (height): 825 mm
Tool dimensions (width x length x height): 817 x 569 x 825 mm
Packaging dimensions (width): 588 mm
Packaging dimensions (length): 772 mm
Packaging dimensions (height): 445 mm
Packaging dimensions (width x length x height): 588 x 772 x 445 mm
Battery voltage: 18.0 V
Saw blade diameter: 216 mm
Weight: 15,3 kg
Cutting capacity at 0°, height: 70 mm
Cutting capacity at 0°, width: 300 mm
Cutting capacity, 0°: 70 x 300 mm
Cutting capacity at 45° mitre, height: 65 mm
Cutting capacity at 45° mitre, width: 214 mm
Cutting capacity, 45° mitre: 65 x 214 mm
Cutting capacity at 45° bevel, height: 45 mm
Cutting capacity at 45° bevel, width: 306 mm
Cutting capacity, 45° bevel: 45 x 306 mm
Mitre setting, left: 52 °
Mitre setting, right: 60 °
Mitre setting: 52 ° L / 60 ° R

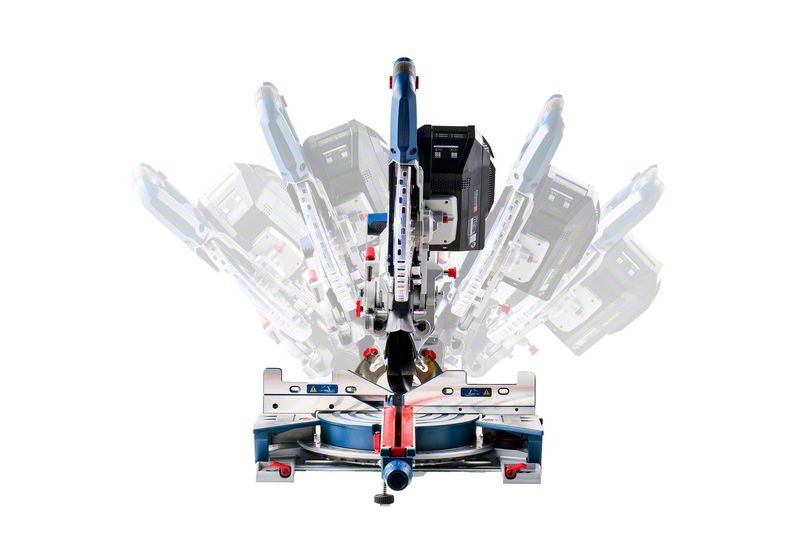

Bevel setting, left: 47 °
Bevel setting, right: 47 °
Bevel setting: 47 ° L / 47 ° R
No-load speed, from: 2.500 rpm
No-load speed, up to: 4.500 rpm
No-load speed: 2,500 - 4,500 rpm
Saw blade bore diameter: 30 mm
Product category subdivision: Cordless Mitre Saw BITURBO
Positioning: Cordless flexibility with corded performance - the fully featured mitre saw
User benefit incl. Reason to believe: Power of a corded 1,600 W mitre saw thanks to its BITURBO Brushless technology
User benefit incl. Reason to believe: Two-point dust extraction for a cleaner and healthier working environment

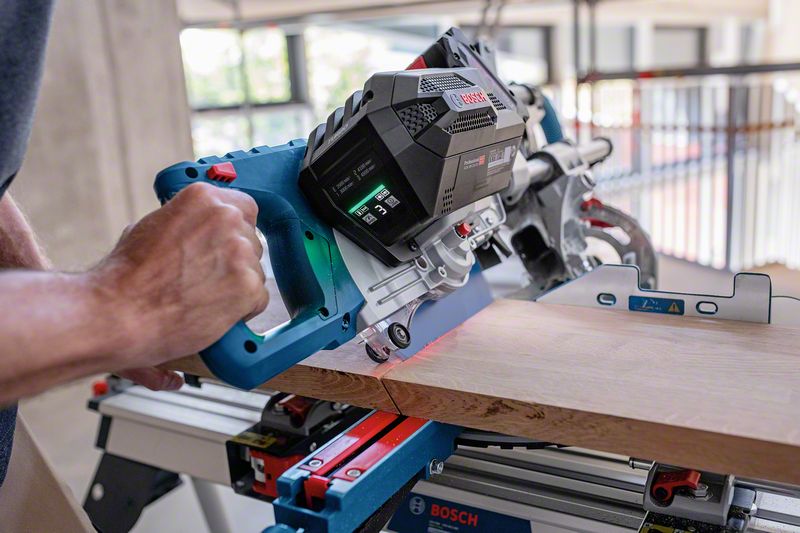

User benefit incl. Reason to believe: User interface for speed selection including ECO mode and tool-less saw blade change for best user experience.
Positioning (BE): Cordless flexibility with corded performance - the fully featured mitre saw
User benefit incl. Reason to believe (BE): Power of a corded 1,600 W mitre saw thanks to its BITURBO Brushless technology (For maximum power, use ProCORE18V ? 8.0 Ah.)
User benefit incl. Reason to believe (BE): Two-point dust extraction for a cleaner and healthier working environment
User benefit incl. Reason to believe (BE): User interface for speed selection including ECO mode and tool-less saw blade change for best user experience.
Title: Cordless Mitre Saw BITURBO GCM 18V-216 DC Professional
Novelty: no
Novelty until: 01.09.2022
Scope of supply: 1 x circular saw blade, Expert for Wood, 216 x 30 x 1.7 mm, 48 (2 608 644 519)
Scope of supply: 1 x Bluetooth Low Energy module GCY 42 Professional (1 600 A01 6NH)
Scope of supply: SDS saw blade lock (spare part number 1 609 B05 323)
Scope of supply: Clamp (1 609 B04 224)
Scope of supply: Stop plate (1 609 B02 365)
Scope of supply: Screw (1 609 B00 263)
Scope of supply: Wrench Socket (1 609 B06 988)
Scope of supply: Cardboard box
SOL Date: 01.06.2022
Scope of delivery:
1 ST Cordless Mitre Saw BITURBO GCM 18V-216 DC
