Robert Bosch Power Tools GmbH Cordless Mitre Saw BITURBO GCM 18V-305 GDC

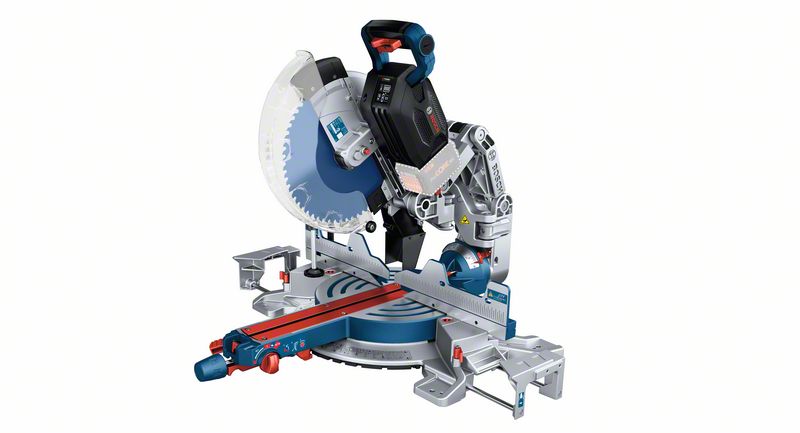

Cordless Mitre Saw BITURBO GCM 18V-305 GDC
PRODUCT DESCRIPTION

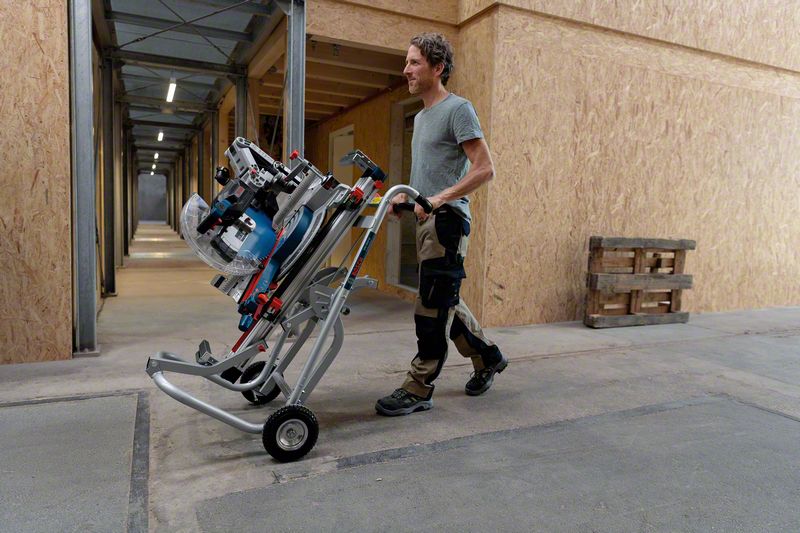

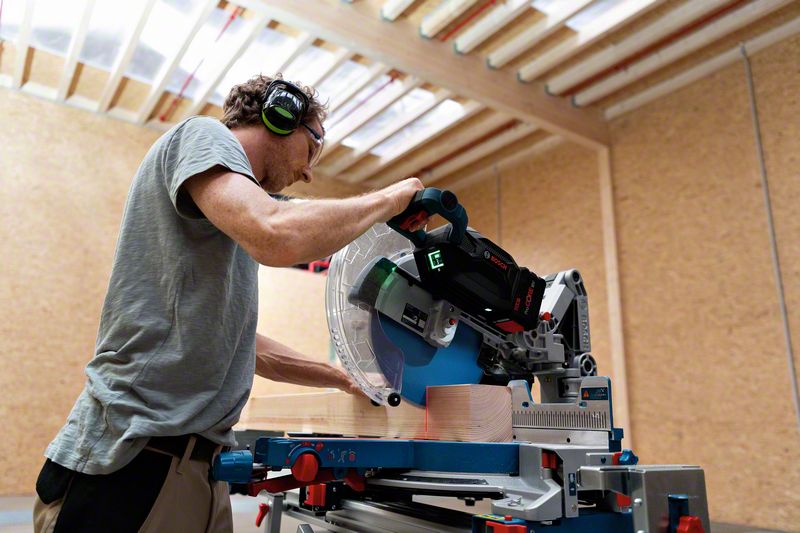

Cordless Mitre Saw BITURBO GCM 18V-305 GDC, The GCM 18V-305 GDC Professional BITURBO cordless mitre saw offers powerful cutting depth with cuts up to 120 mm. Fully optimised for the ProCORE18V technology, the mitre saws brushless motor delivers cordless power equal to 2000 W corded mitre saw. This saw offers a User Interface as well as connectivity for quick battery status check and speed selection including ECO mode. Features like tool-less saw blade change, upfront bevel control, and motor brake enhance the safety of the saw. The tool is ideal for compound cutting as well as a broad range of materials. The saw can be mounted on multiple Bosch GTA stands. This mitre saw is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System), for maximum power use ProCORE18V 5.5 Ah. The GCM 18V-305 GDC Professional delivers full power with just one battery, also in tough applications. Speed selection and Bosch´s wide saw blade range make this mitre saw perfectly suitable for working with almost any material. 1 x cordless saw blade, Expert for Wood, 305 x 2.2 /1.6 x 30 mm, 60 (2 608 644 528); Internal hexagon (1 609 B00 256); Insert plate (1 609 B02 375); 1 x Bluetooth Low Energy module GCY 42 Professional (1 600 A01 6NH); Cardboard box; Dustbag (spare part number 1 609 B05 010); SDS saw blade lock (spare part number 1 609 B05 323); Clamp (1 609 B06 203)
Article ID: 0601B43000
ADDITIONAL INFORMATIONPackaging dimensions (length): 783 mm
Packaging dimensions (height): 572 mm
Packaging dimensions (width x length x height): 585 x 783 x 572 mm
Battery voltage: 18.0 V
Saw blade diameter: 305 mm
Weight: 26,9 kg
Cutting capacity at 0°, height: 104 mm
Cutting capacity at 0°, width: 341 mm
Cutting capacity, 0°: 104 x 341 mm
Cutt. cap. 0° w/ spacer (max. vertical), height: 120 mm
Cutt. cap. 0° w/ spacer (max. vertical), width: 200 mm
Cutting capacity 0° with spacer (max. vertical): 120 x 200 mm
Cutt. cap. 0° w/ spacer (max. horizontal), height: 45 mm
Cutt. cap. 0° w/ spacer (max. horizontal), width: 400 mm
Cutting capacity 0° with spacer (max. horizontal): 45 x 400 mm
Cutting capacity at 45° mitre, height: 104 mm
Cutting capacity at 45° mitre, width: 240 mm
Cutting capacity, 45° mitre: 104 x 240 mm
Cutting capacity at 45° bevel, height: 40 mm
Cutting capacity at 45° bevel, width: 341 mm
Cutting capacity, 45° bevel: 40 x 341 mm
Mitre setting, left: 52 °
Mitre setting, right: 60 °
Mitre setting: 52 ° L / 60 ° R
Bevel setting, left: 47 °
Bevel setting, right: 47 °
Bevel setting: 47 ° L / 47 ° R
Tool dimensions (width): 630 mm
Tool dimensions (length): 565 mm
Tool dimensions (height): 790 mm
Tool dimensions (width x length x height): 630 x 565 x 790 mm
No-load speed, from: 2.550 rpm
No-load speed, up to: 4.000 rpm
No-load speed: 2,550 - 4,000 rpm
Saw blade bore diameter: 30 mm
Product category subdivision: Cordless Mitre Saw BITURBO
Positioning: The combination of impressive cutting performance and full cordless flexibility
User benefit incl. Reason to believe: Brushless motor powered by ProCORE18V battery delivers cordless power equal to 2000 W corded mitre saw

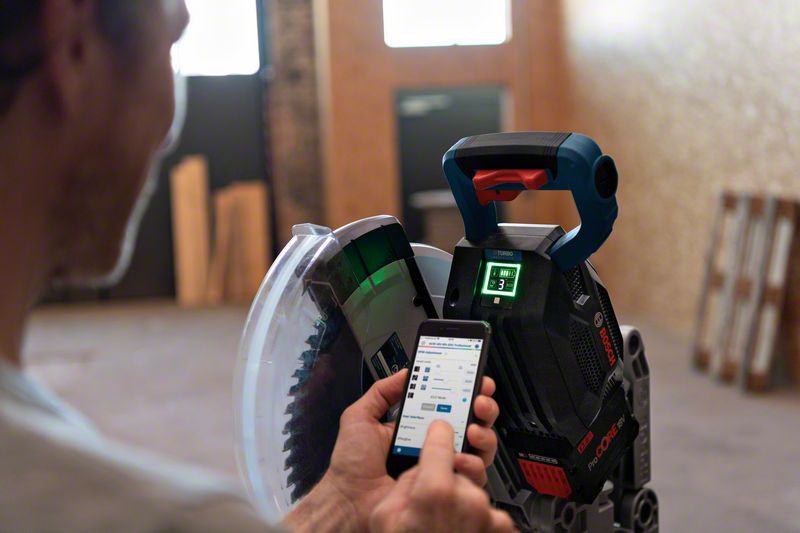

User benefit incl. Reason to believe: User Interface and connectivity for battery status check; speed selection including ECO mode
User benefit incl. Reason to believe: Tool-less saw blade change; upfront bevel control; motor brake; space-saving glide arm for safe and convenient operation
Positioning (BE): The combination of impressive cutting performance and full cordless flexibility
User benefit incl. Reason to believe (BE): Brushless motor powered by ProCORE18V battery delivers cordless power equal to 2000W corded mitre saw
User benefit incl. Reason to believe (BE): HMI and connectivity for battery status check; speed selection including ECO mode
User benefit incl. Reason to believe (BE): Tool-less blade change; upfront bevel control; motor brake; space-saving glide arm for safe and convenient operation
Title: Cordless Mitre Saw BITURBO GCM 18V-305 GDC Professional
Novelty: no
Novelty until: 01.12.2020
Scope of supply: 1 x cordless saw blade, Expert for Wood, 305 x 2.2 /1.6 x 30 mm, 60 (2 608 644 528)
Scope of supply: Internal hexagon (1 609 B00 256)
Scope of supply: Insert plate (1 609 B02 375)
Scope of supply: 1 x Bluetooth Low Energy module GCY 42 Professional (1 600 A01 6NH)
Scope of supply: Cardboard box
Scope of supply: Dustbag (spare part number 1 609 B05 010)
Scope of supply: SDS saw blade lock (spare part number 1 609 B05 323)
Scope of supply: Clamp (1 609 B06 203)
SOL Date: 20.11.2020
Scope of delivery:
1 ST Cordless Mitre Saw BITURBO GCM 18V-305 GDC
